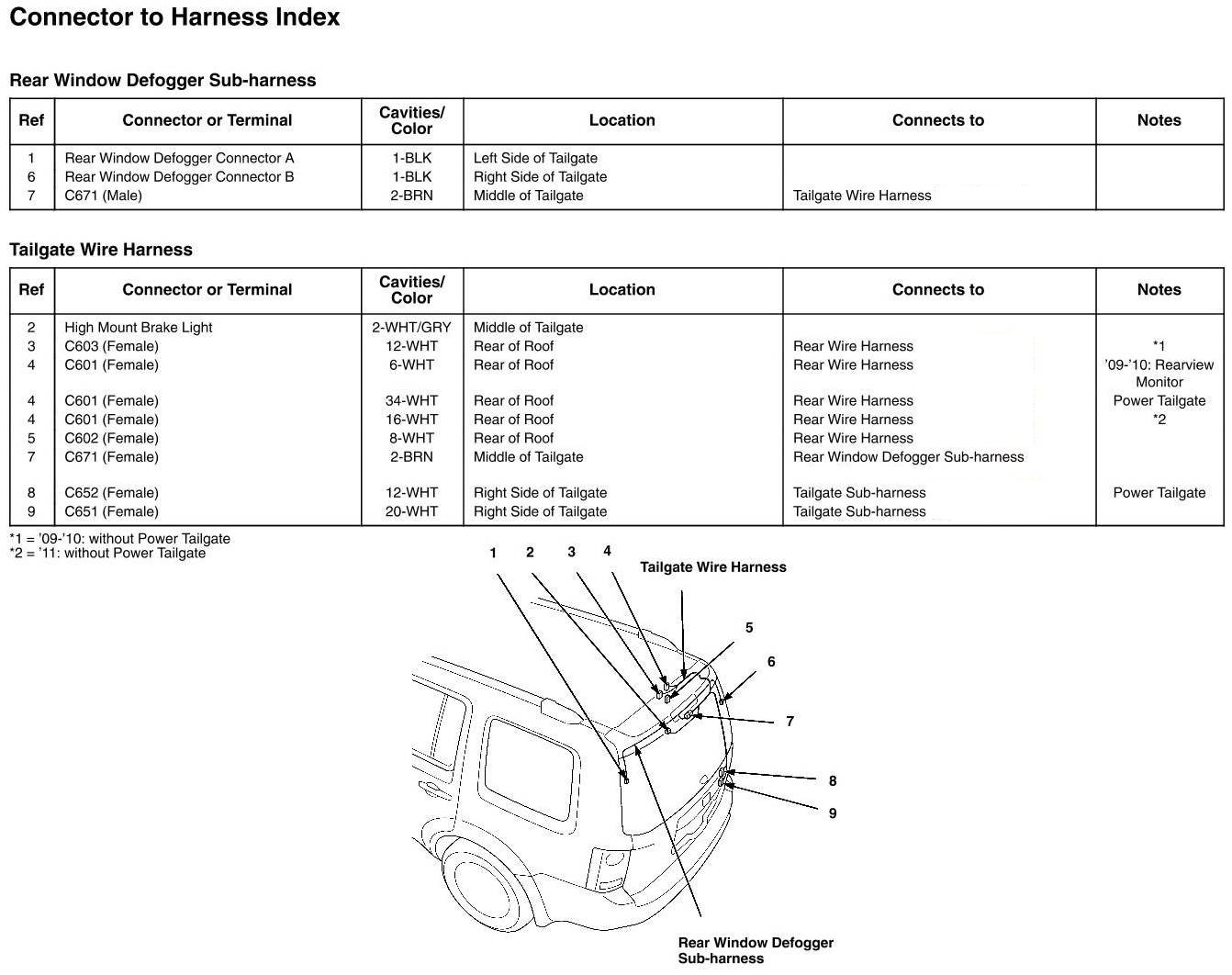

Rear Window Defogger Sub-Harness And Tailgate Wire Harness Connector And Harness Locations
Rear Window Defogger Sub-Harness And Tailgate Wire Harness Connector And Harness Locations
