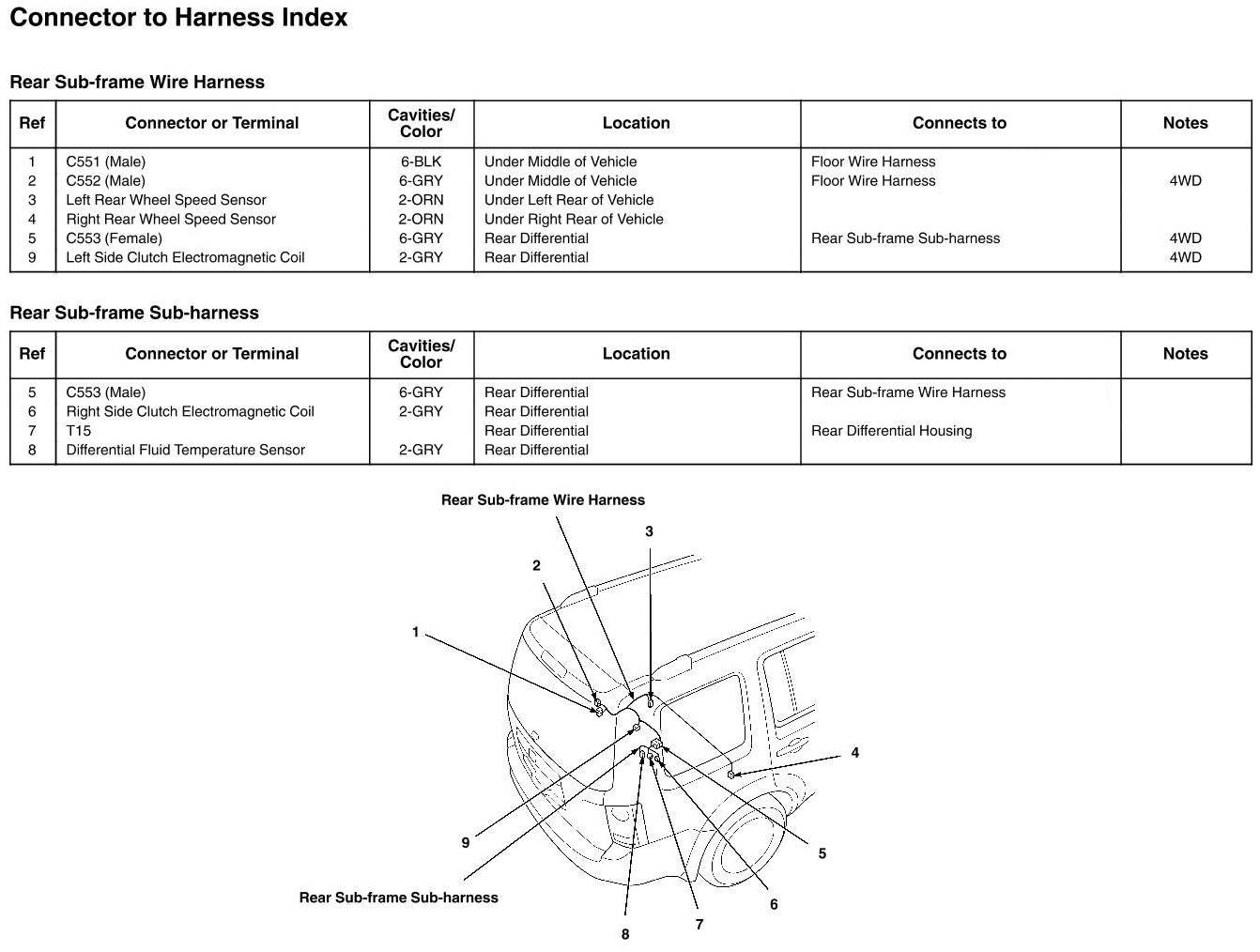

Rear Sub-Frame Wire Harness And Rear Sub-Frame Subharness Connector And Harness Locations
Rear Sub-Frame Wire Harness And Rear Sub-Frame Subharness Connector And Harness Locations
