Voice Activation Switch
>>

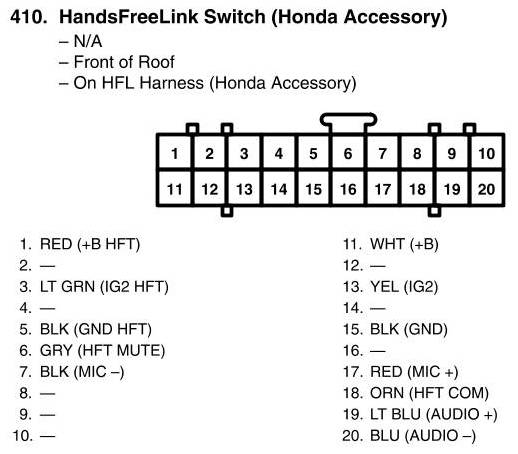

HandsFreeLink Switch Connector View (Honda Accessory)
HandsFreeLink Switch Connector View (Honda Accessory)
