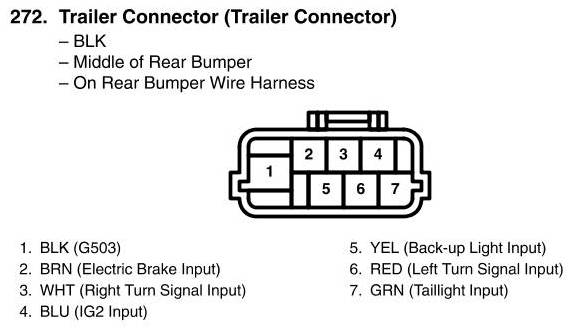

Trailer Connector Connector View (Trailer Connector)
Trailer Connector Connector View (Trailer Connector)
