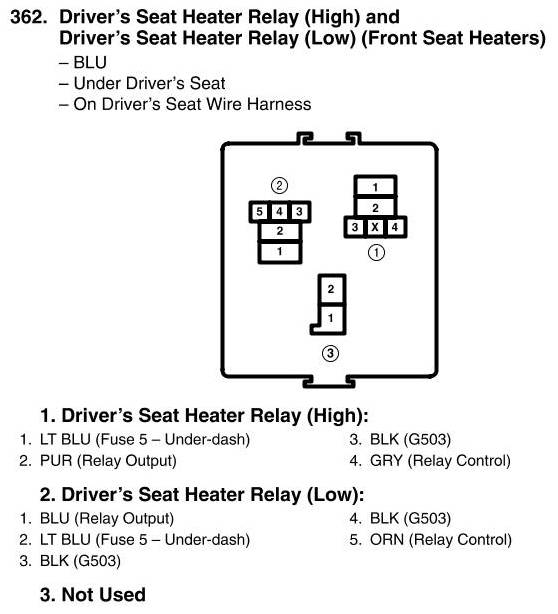

Driver's Seat Heater Relay (High) And Driver's Seat Heater Relay (Low) Connector View (Front Seat Heaters)
Driver's Seat Heater Relay (High) And Driver's Seat Heater Relay (Low) Connector View (Front Seat Heaters)
