Home >> Honda >> 2010 >> Pilot 2WD V6-3.5L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Oxygen Sensor >> Front A/F Sensor (B2, S1) Connector View

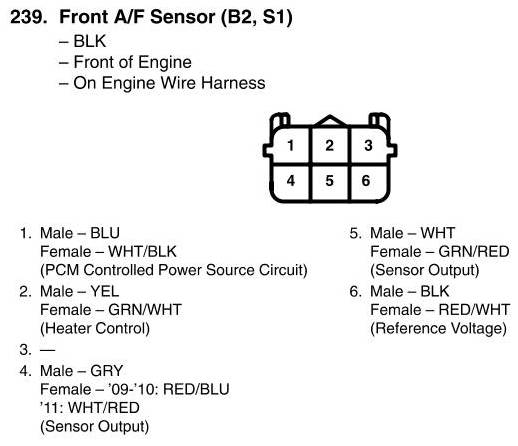

Front A/F Sensor (B2, S1) Connector View
