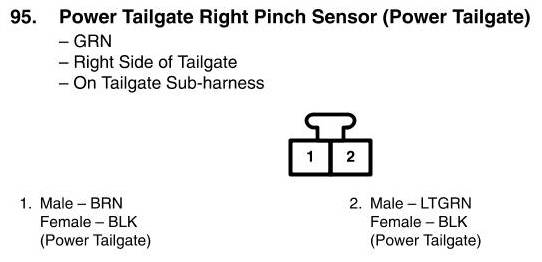

View 95 - Power Tailgate Right Pinch Sensor Connector View
View 95 - Power Tailgate Right Pinch Sensor Connector View
