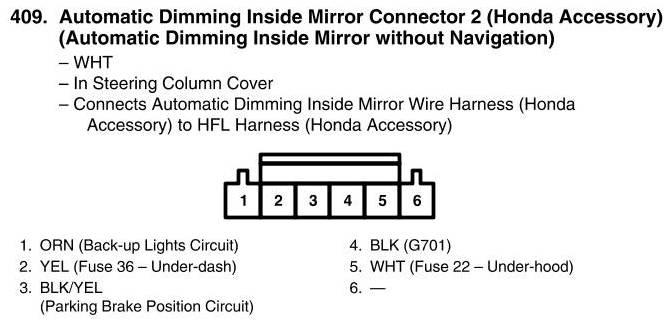

View 409 - Automatic Dimming Inside Mirror Connector 2 Connector View (Honda Accessory)
View 409 - Automatic Dimming Inside Mirror Connector 2 Connector View (Honda Accessory)
