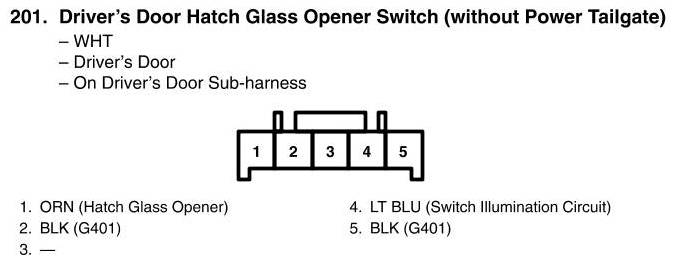

View 201 - Driver's Door Hatch Glass Opener Switch Connector View (Without Power Tailgate)
View 201 - Driver's Door Hatch Glass Opener Switch Connector View (Without Power Tailgate)
