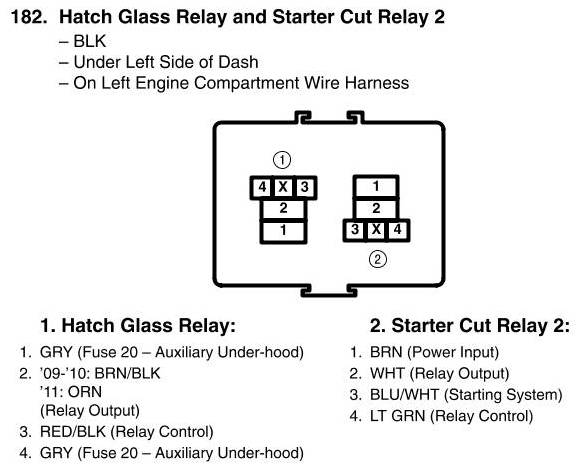

View 182 - Hatch Glass Relay And Starter Cut Relay 2 Connector View
View 182 - Hatch Glass Relay And Starter Cut Relay 2 Connector View
