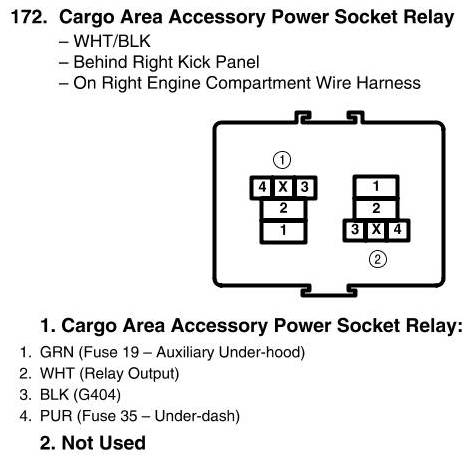

View 172 - Cargo Area Accessory Power Socket Relay Connector View
View 172 - Cargo Area Accessory Power Socket Relay Connector View
