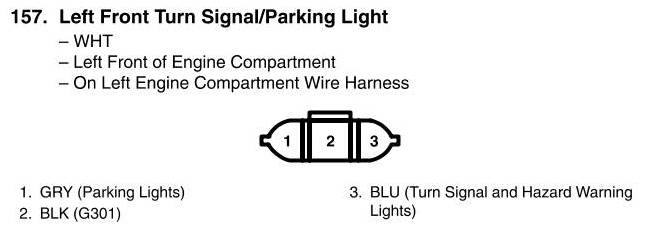

View 157 - Left Front Turn Signal/Parking Light Connector View
View 157 - Left Front Turn Signal/Parking Light Connector View
