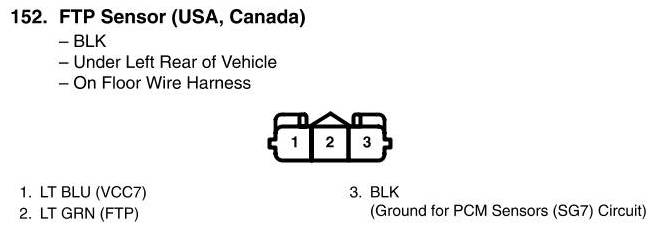

View 152 - FTP Sensor Connector View (USA, Canada)
View 152 - FTP Sensor Connector View (USA, Canada)
