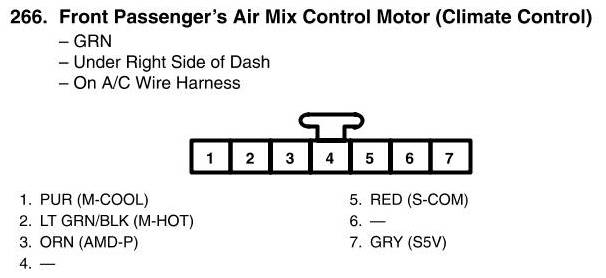

Front Passenger's Air Mix Control Motor Connector View (Climate Control)
Front Passenger's Air Mix Control Motor Connector View (Climate Control)
