Sound Proofing / Insulation: Locations

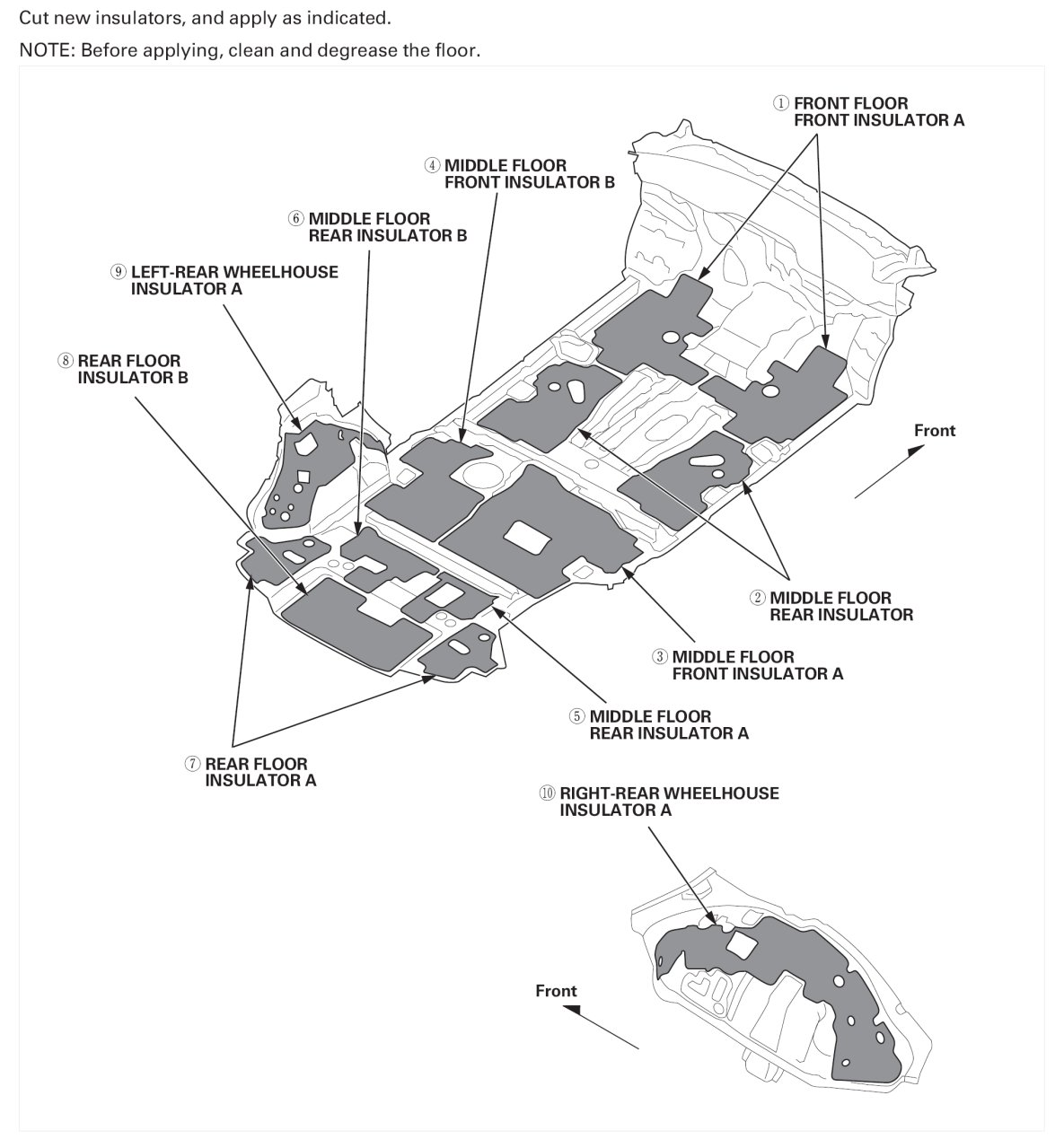

Insulator Locations:

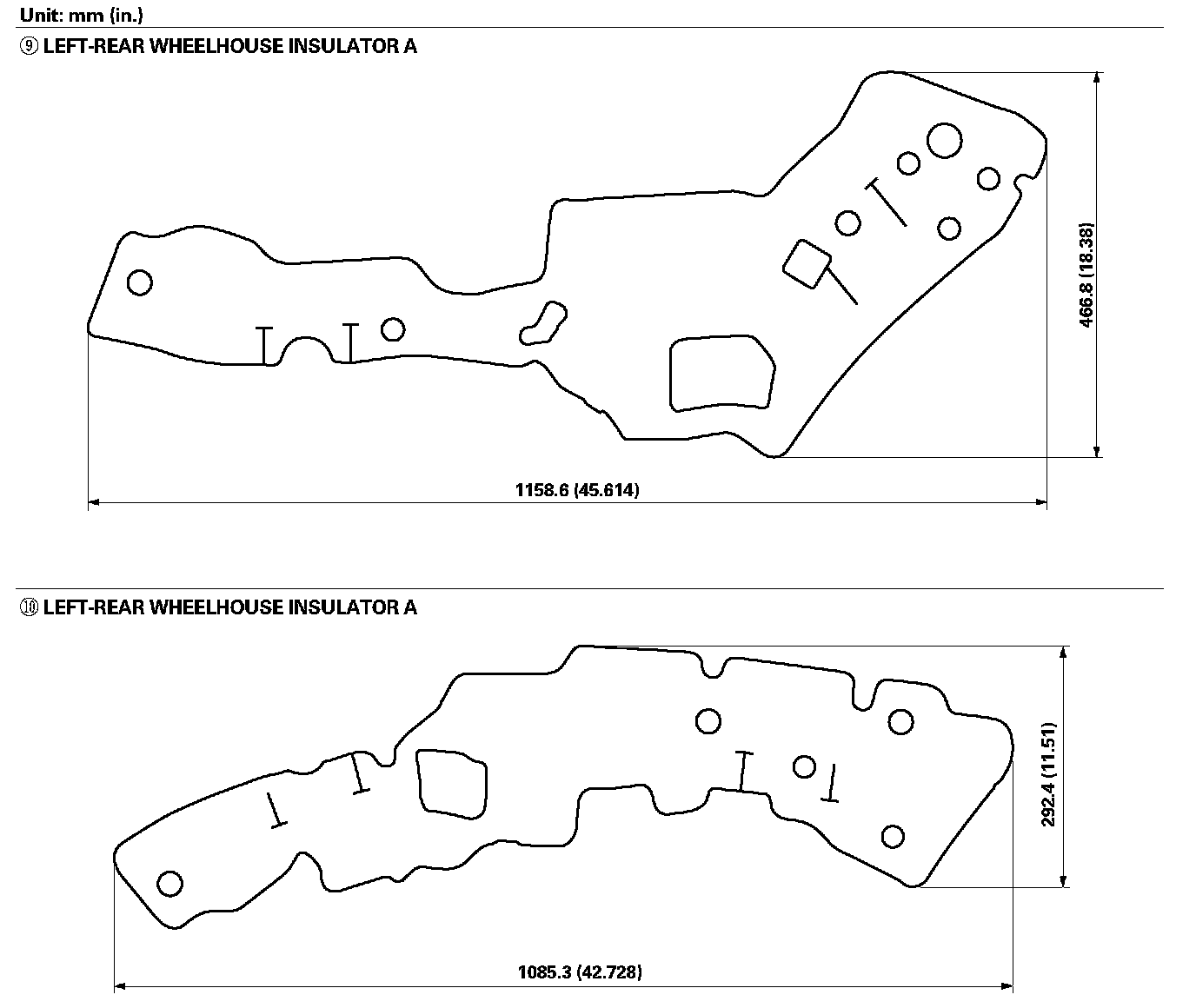

Insulator Sizes (Part 1):
Insulator Sizes (Part 2):
Insulator Sizes (Part 3):
Insulator Sizes (Part 4):
