Power Trunk / Liftgate Hazard Sensor: Service and Repair

Power Tailgate Pinch Sensor Replacement

1. Remove the tailgate trim panel .

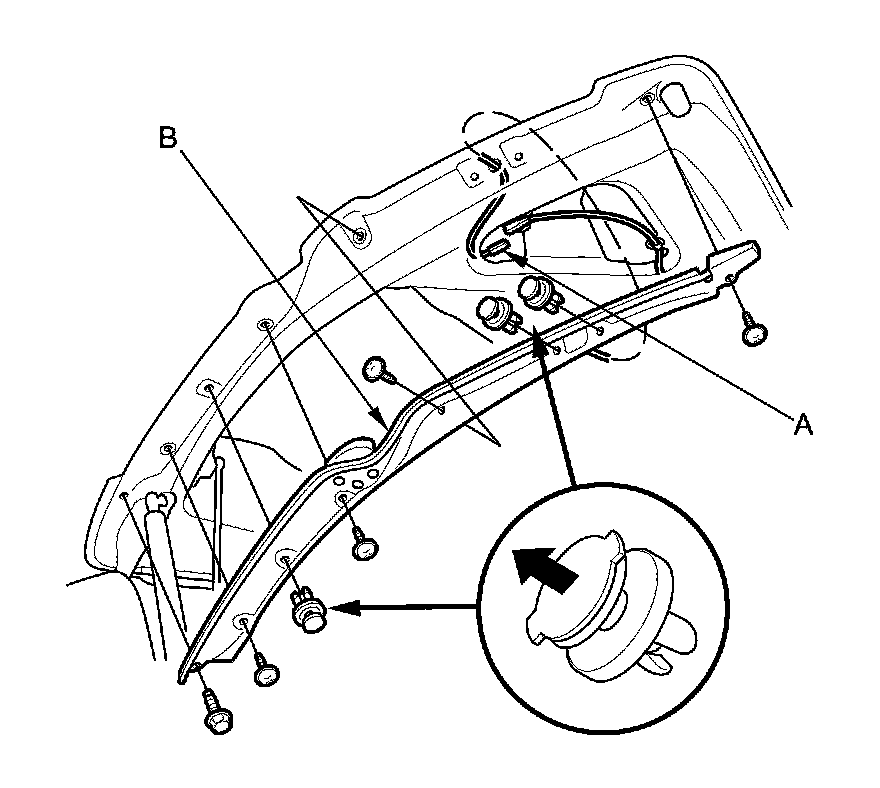

2. Disconnect the 2P connector (A) from the pinch sensor (B).

NOTE: The illustration shows left side pinch sensor, right side is symmetrical.





3. Remove the clips, screws, and bolts from the pinch sensor.

4. Install in the reverse order of removal.
