Third Row Seat Access Cable Replacement

Third Row Seat Access Cable Replacement

NOTE:

- Put on gloves to protect your hands.
- Take care not to bend the cable.
- The left second row seat is shown; the right second row seat is similar.

1. Remove the second row seat Second Row Seat Removal/Installation.

2. Remove the second row seat-back cover/pad from the seat-back frame Second Row Seat Cover Replacement.

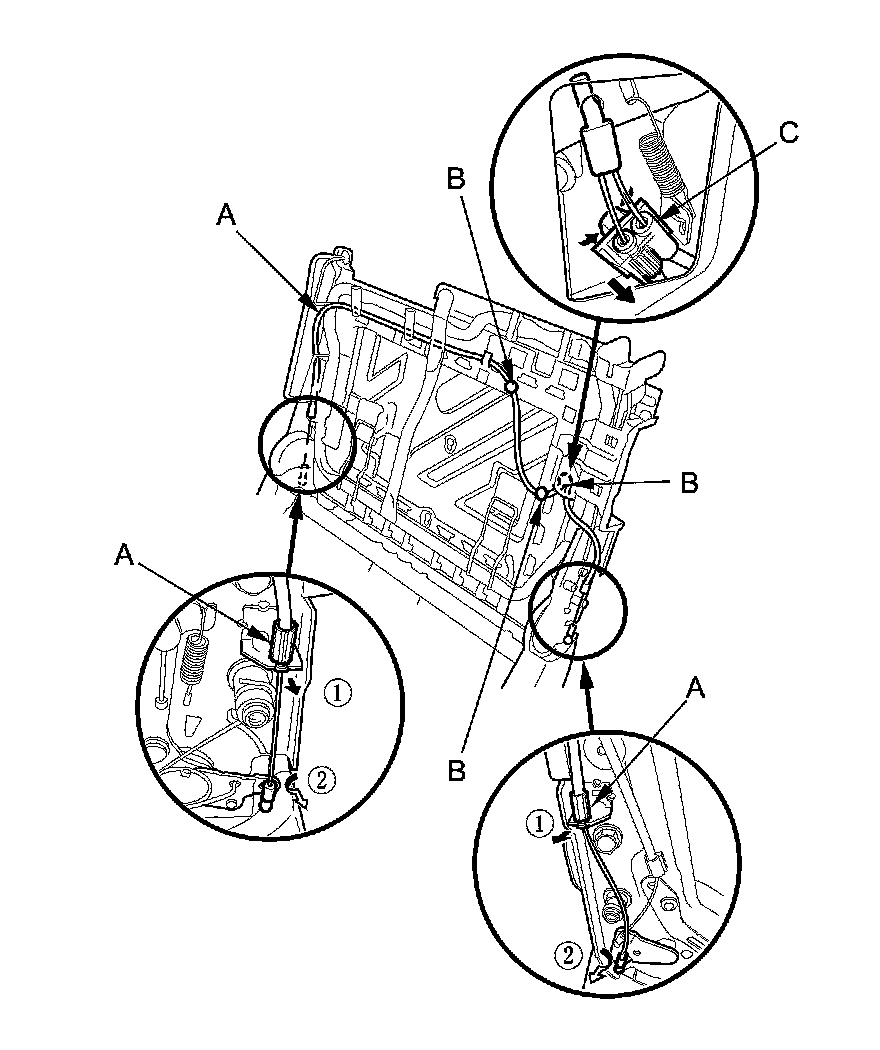

3. Disconnect the third row seat access cables (A) and detach the clips (B), then remove the cable by pinching the hooks of the holder (C).






4. Install the cable in the reverse order of removal, and make sure each cable is connected securely.
