Sunroof / Moonroof Motor: Service and Repair

Moonroof Motor Replacement

1. Remove the roof console.

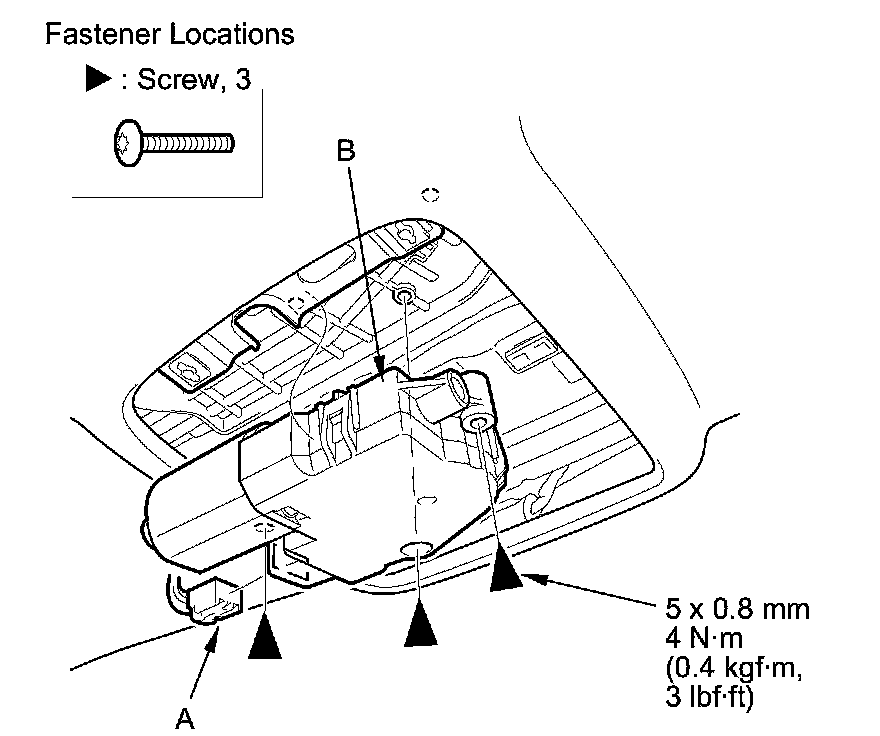

2. Put on gloves to protect your hands. Disconnect the connector (A), remove the screws with a T25 TORX bit, then remove the motor (B). Do not operate the motor before reinstallation.





3. Install the motor in the reverse order of removal, and note these items:

- Apply medium strength liquid thread lock to the motor mounting bolts before reinstallation.
- Make sure the connector is plugged in properly.
- Reset the moonroof control unit Programming and Relearning.
- Make sure the motor operates properly.
