Trailer Connector: Service and Repair

Trailer Lighting Connector Replacement

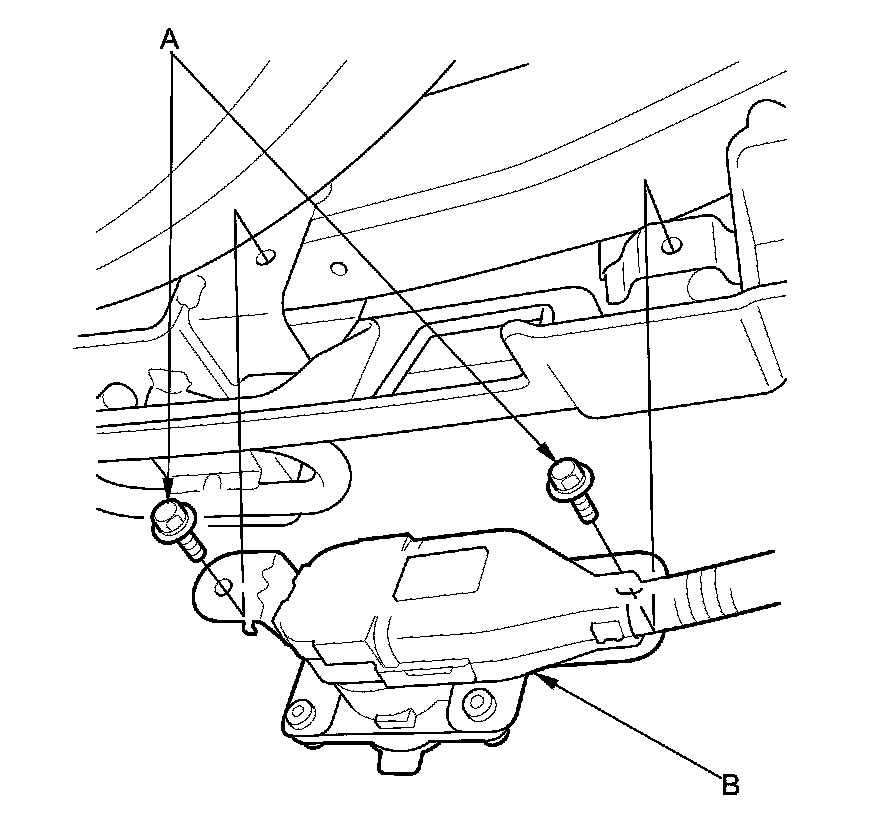

1. Remove the two bolts (A), and separate the trailer lighting connector (B) from the trailer hitch.

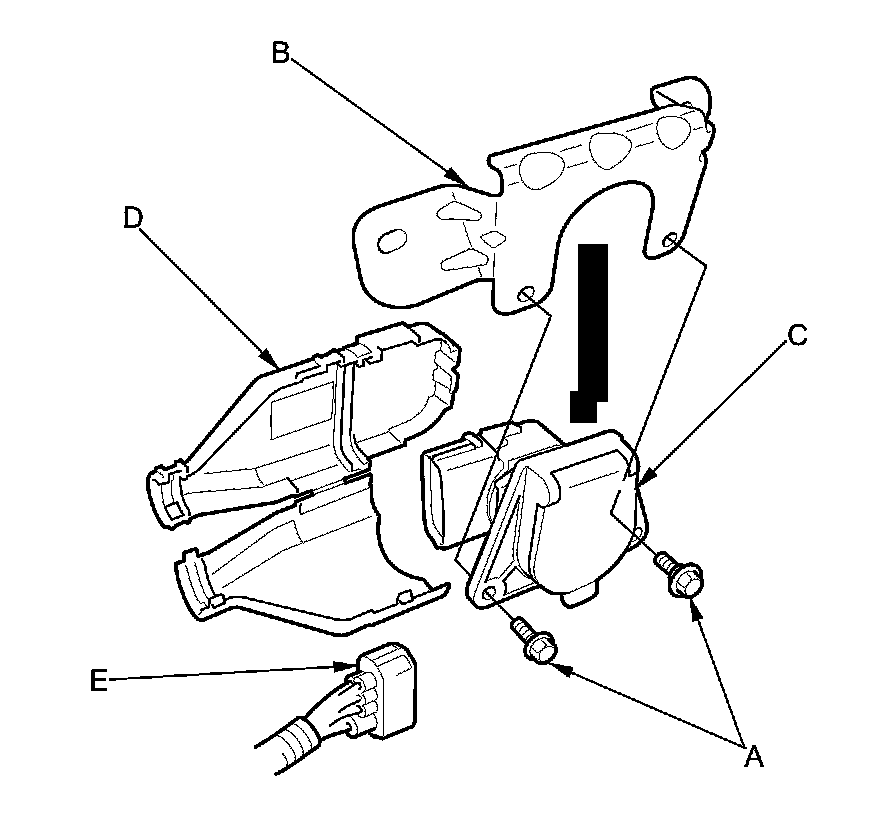

2. Remove the two bolts (A) and the bracket (B) from the trailer lighting connector (C).





3. Remove the cover (D) and disconnect the 10P connector (E) from the trailer lighting connector.

4. Install the lighting connector in the reverse order of removal.
