USB Adapter Control Unit Replacement

USB Adapter Control Unit Replacement

1. Remove the passenger's side center console trim Center Console Removal/Installation.

2. Loosen the bolts (A) and detach the harness clip (B), then pull out the stay (C).

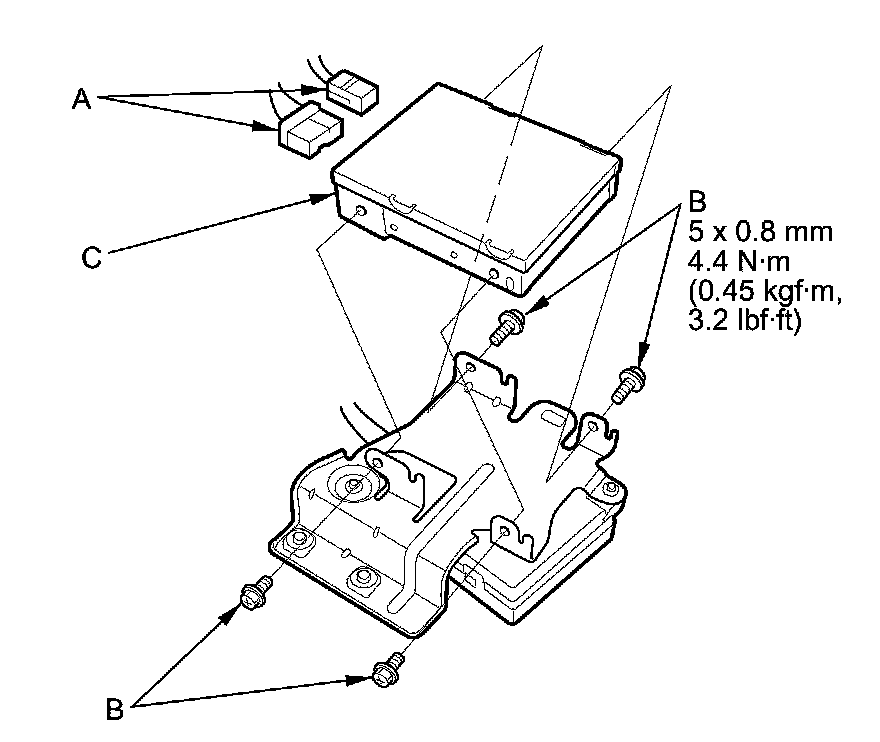

3. Disconnect the connectors (A), then remove the bolts (B) and the USB adapter control unit (C).






4. Install the USB adapter control unit in the reverse order of removal.
