Transfer Assembly Removal (A/T)

Transfer Assembly Removal

1. Raise the vehicle on a lift, and make sure it is supported securely.

2. Remove the drain plug (A), and drain the automatic transmission fluid (ATF).





3. Reinstall the drain plug with a new sealing washer (B).

4. Make a reference mark (A) across the No. 1 propeller shaft (B) and the transfer companion flange (C).





5. Separate the No. 1 propeller shaft from the transfer assembly.

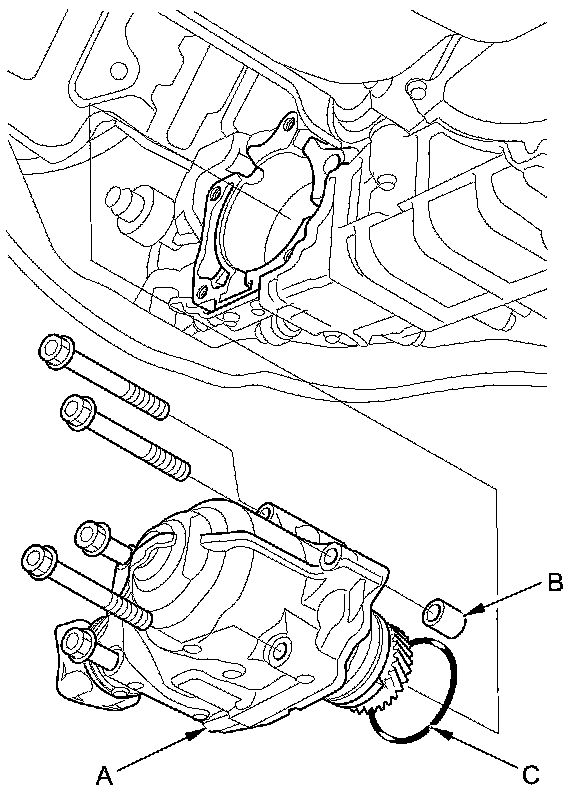

6. Remove the transfer assembly (A), the dowel pin (B), and the O-ring (C).
