M/T Differential Carrier/Final Driven Gear/Transfer Drive Gear Replacement (M/T)

M/T Differential Carrier/Final Driven Gear/Transfer Drive Gear Replacement

4WD

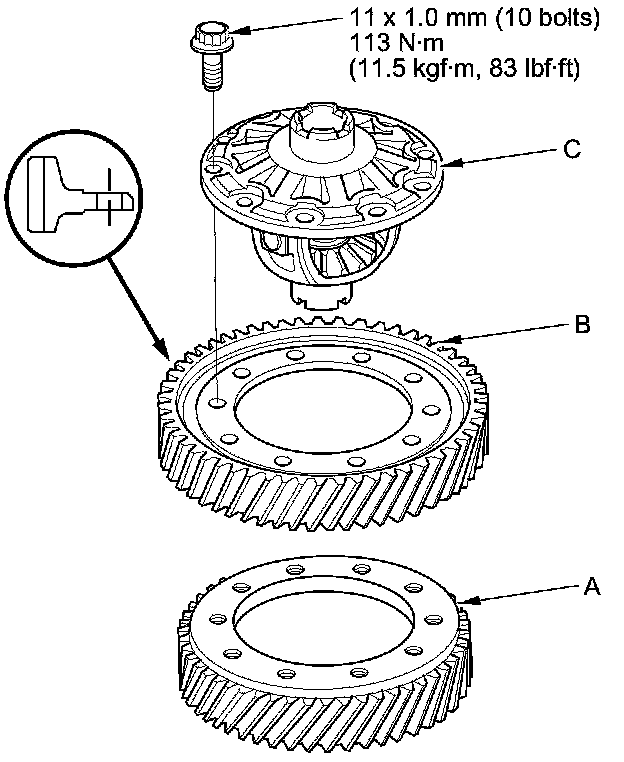

1. Loosen the bolts in a crisscross pattern in several steps, then remove the bolts, the transfer drive gear (A), and the final driven gear (B) from the differential carrier (C).

NOTE: The bolts have left-hand threads.





2. Install the final driven gear and the transfer drive gear with the chamfer on the inside diameter facing the carrier. Tighten the bolts in a crisscross pattern in several steps.

NOTE: The bolts have left-hand threads.
