Home >> Honda >> 2010 >> Element 4WD L4-2.4L >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Differential Mount >> Service and Repair >> Rear Differential Mount Replacement (A/T)

Rear Differential Mount Replacement (A/T)

Rear Differential Mount Replacement

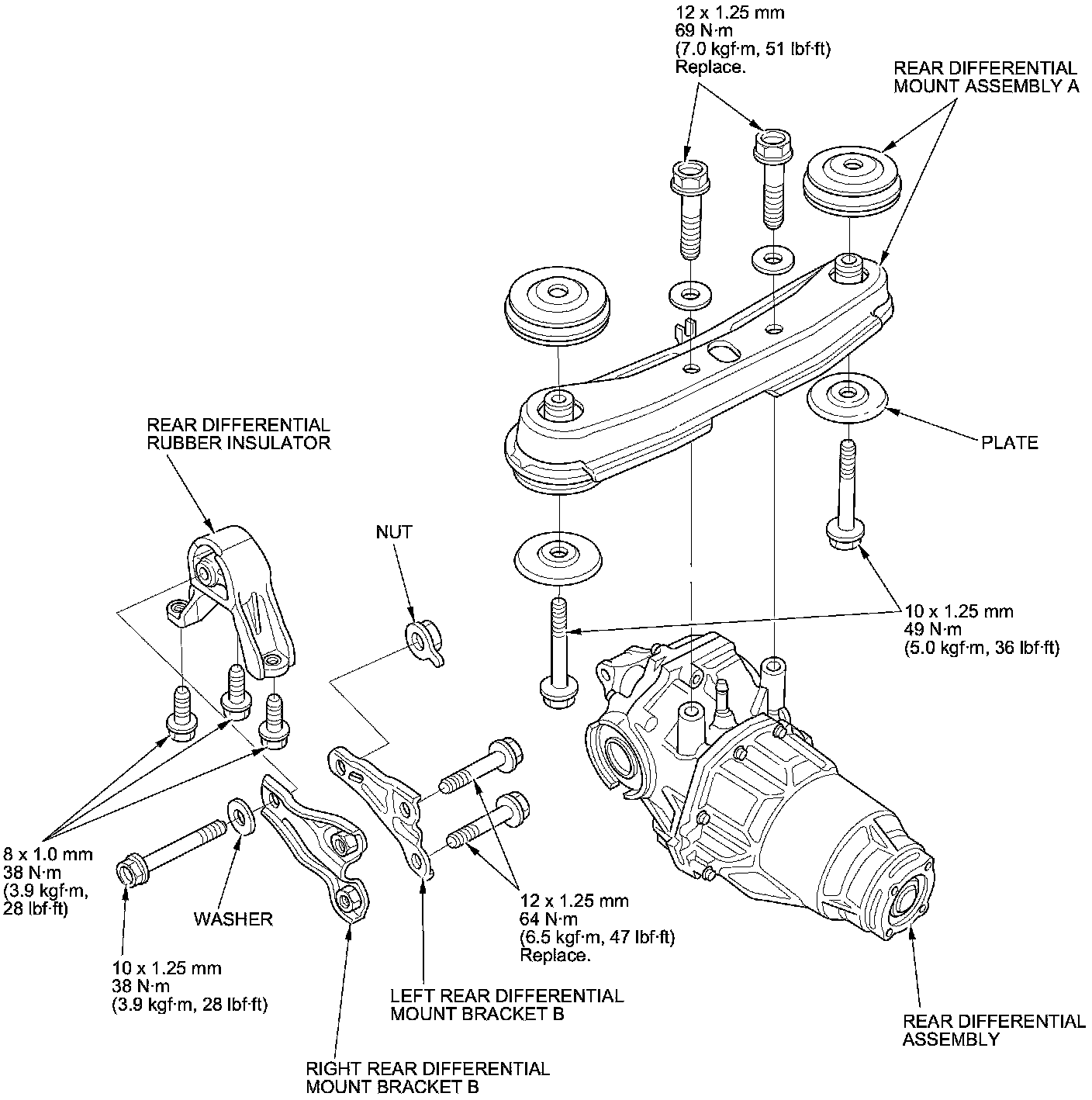

Exploded View

A/T model
