Fuel Filler Hose: Service and Repair

Fuel Fill Pipe Removal/Installation

1. Drain the fuel tank Service and Repair.

2. Remove the fuel fill cap.

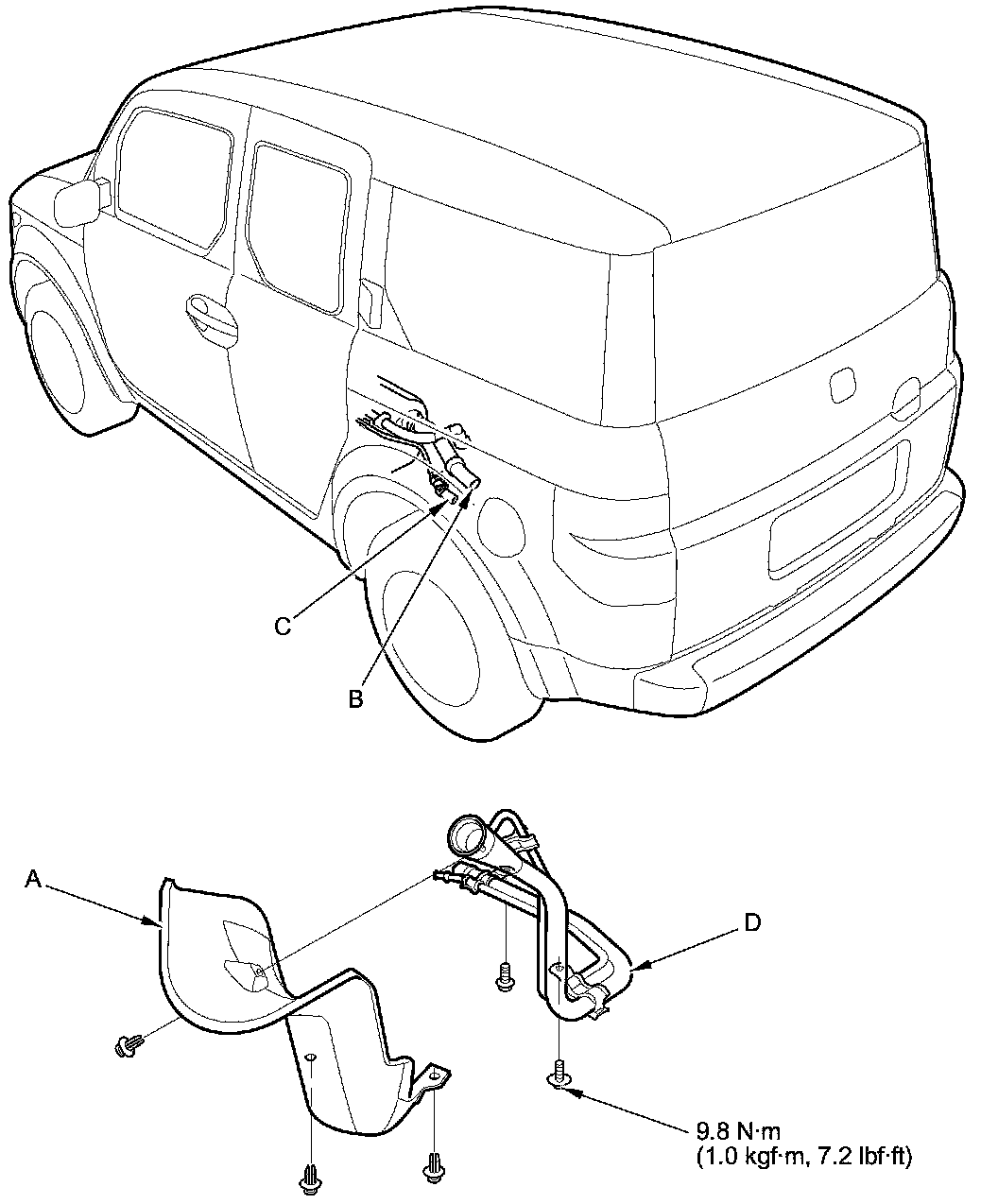

3. Remove the fuel fill pipe cover (A).





4. Disconnect the fuel fill tube (B) and the fuel vapor hose (C).

5. Remove the fuel fill pipe (D).

6. Install the parts in the reverse order of removal.
