Home >> Honda >> 2010 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Locations >> Harness Locations >> Engine Compartment Wire Harness (Right Branch) And A/C Compressor Wire Harness Connector And Harness Locations

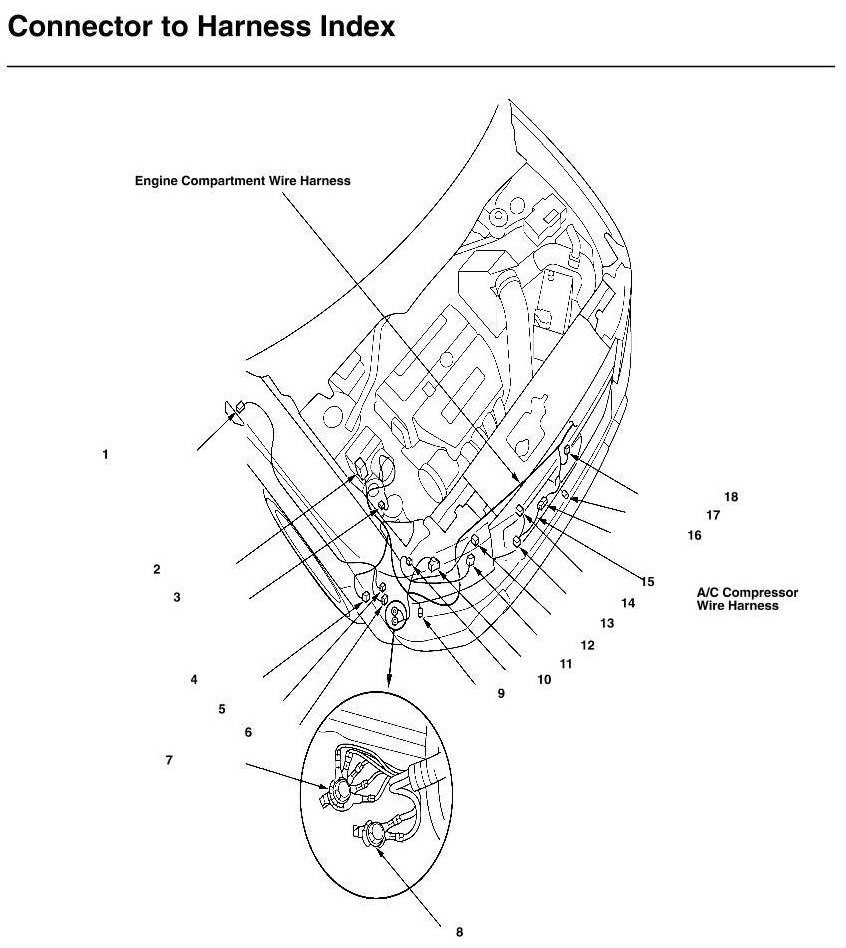

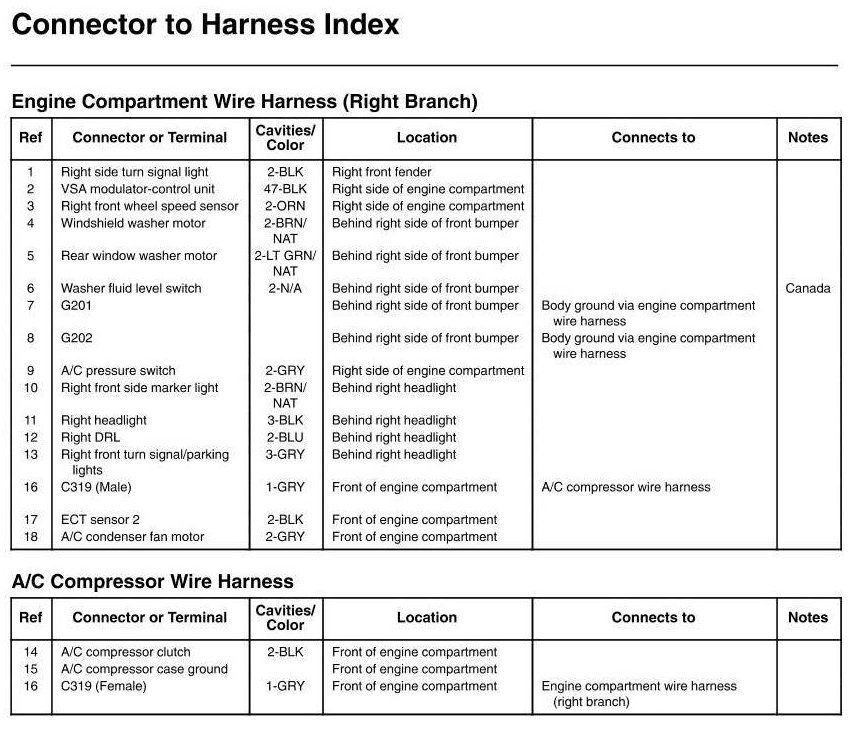

Engine Compartment Wire Harness (Right Branch) And A/C Compressor Wire Harness Connector And Harness Locations
