Exterior Lights Component Location Index




Exterior Lights Component Location Index

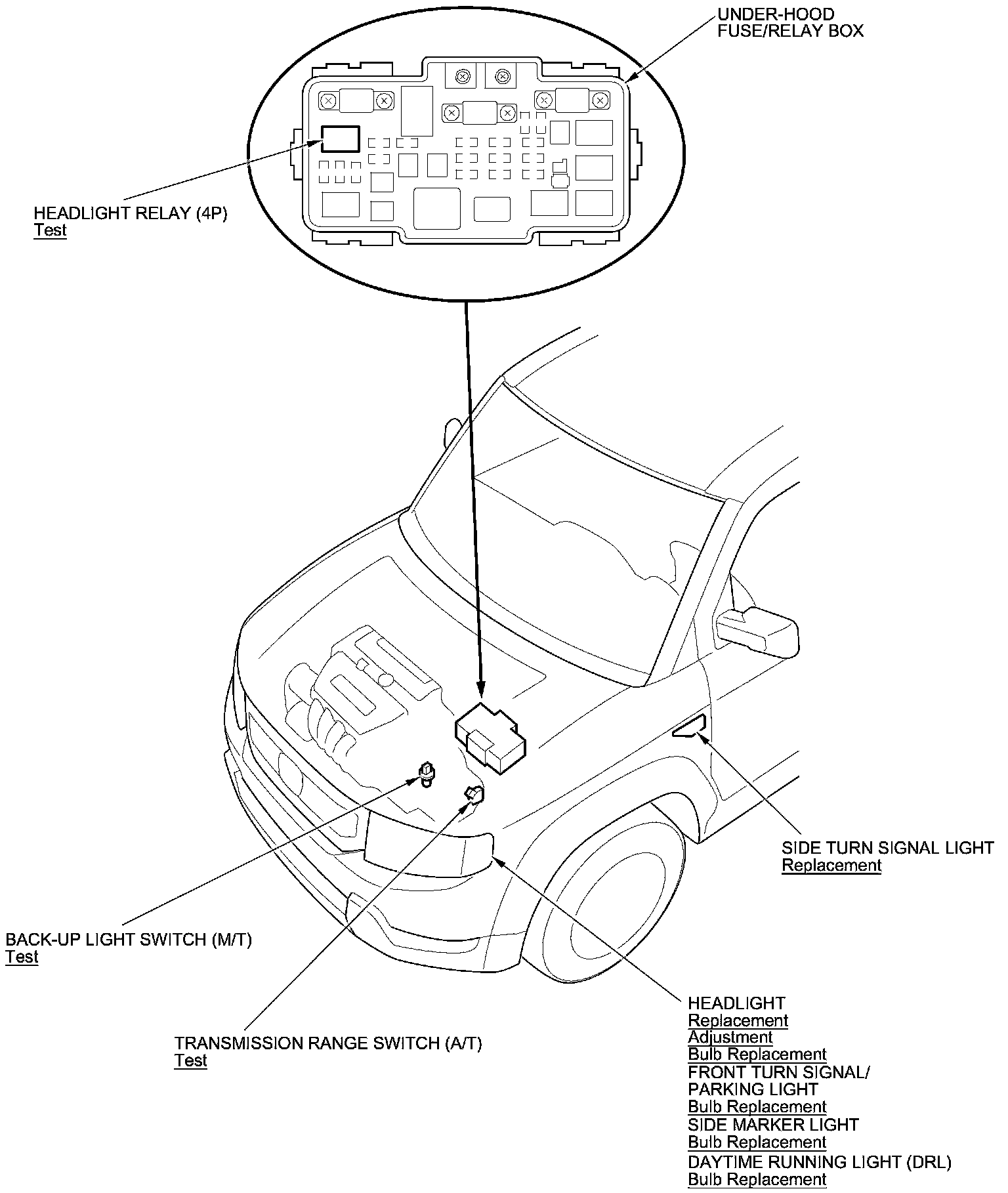

'07-08 models except SC

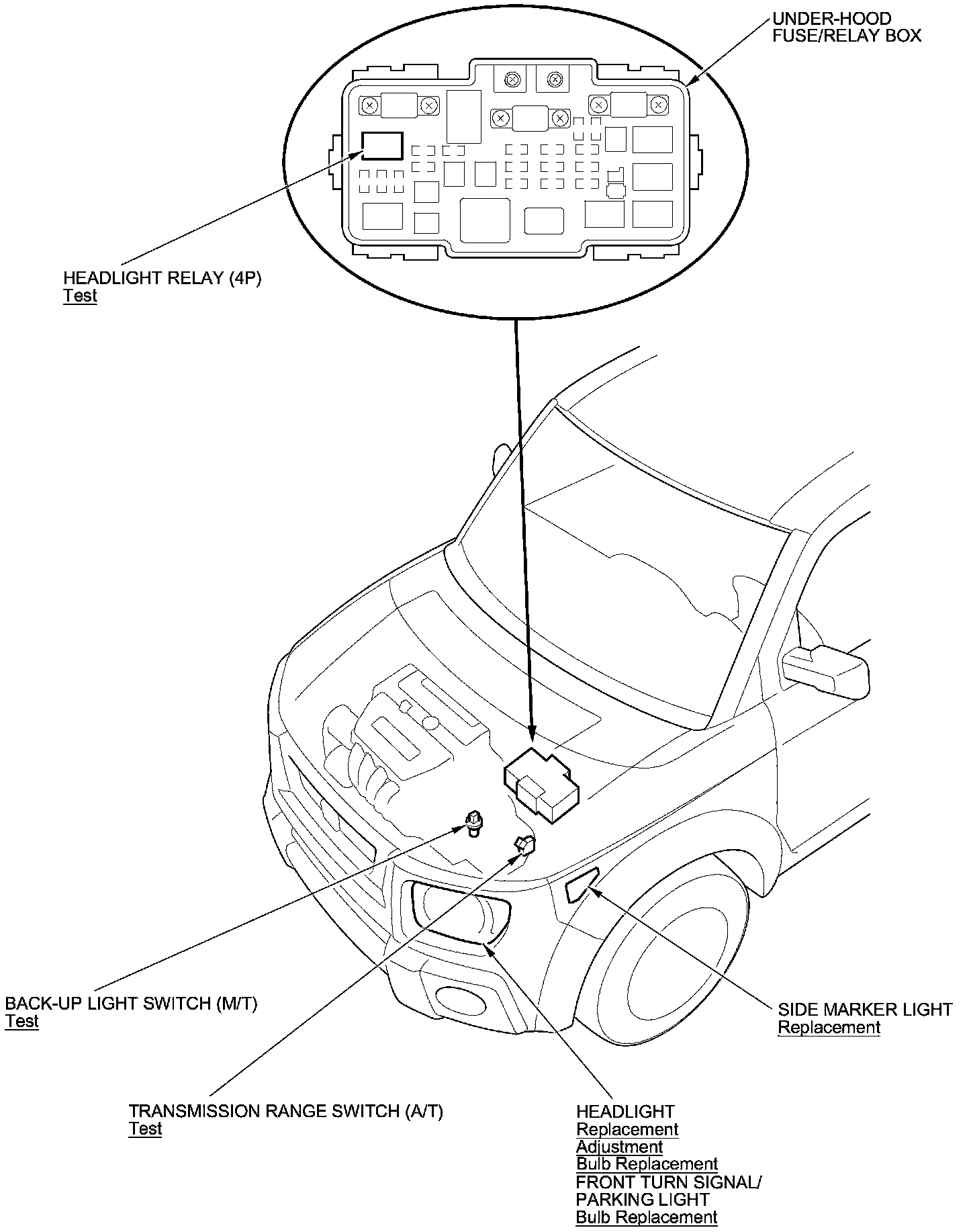

'07-08 models SC

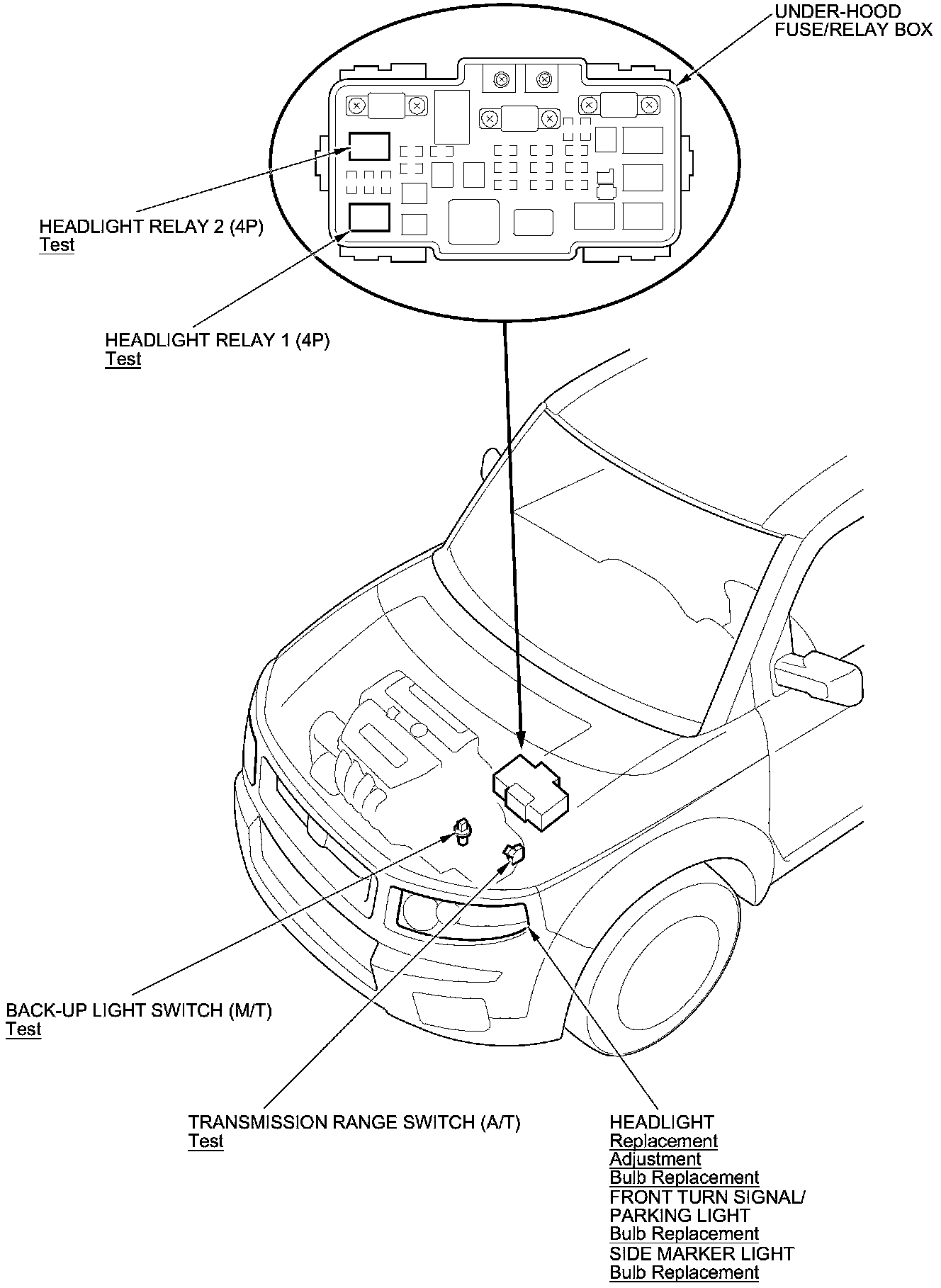

'09-11 models

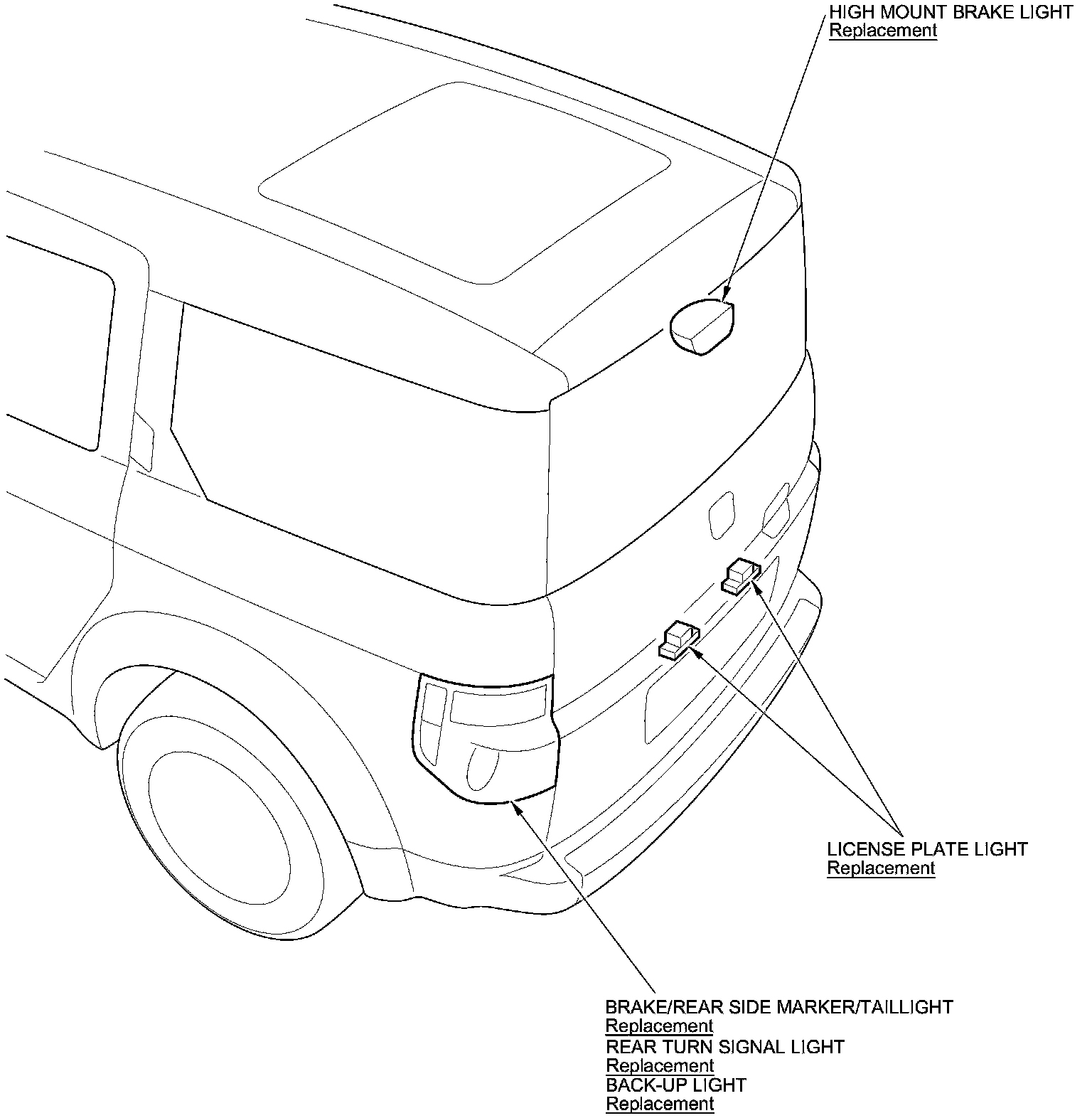

'07-08 models

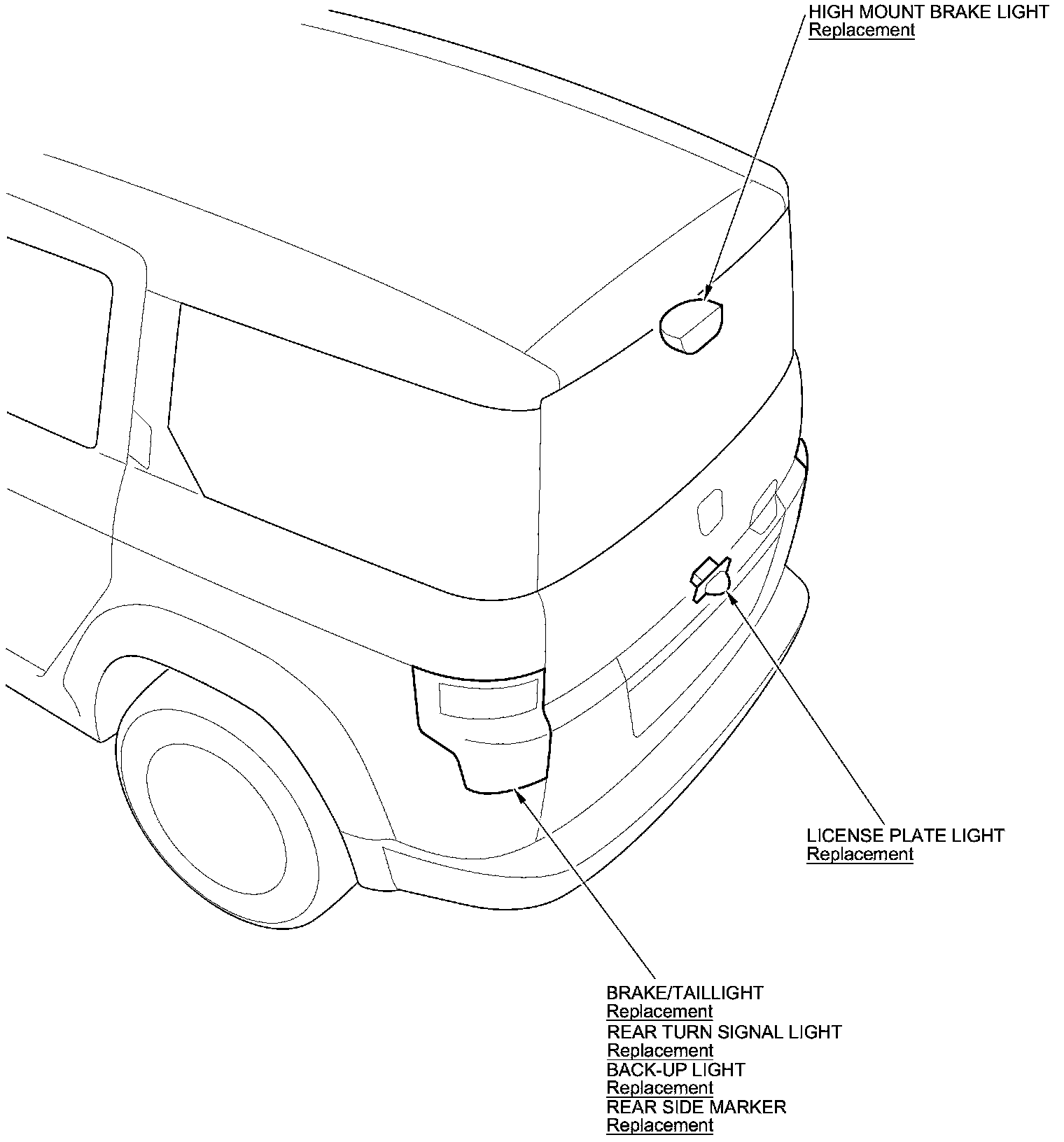

'09-11 models
