Headlamp: Service and Repair

Headlight Replacement

'09-11 models

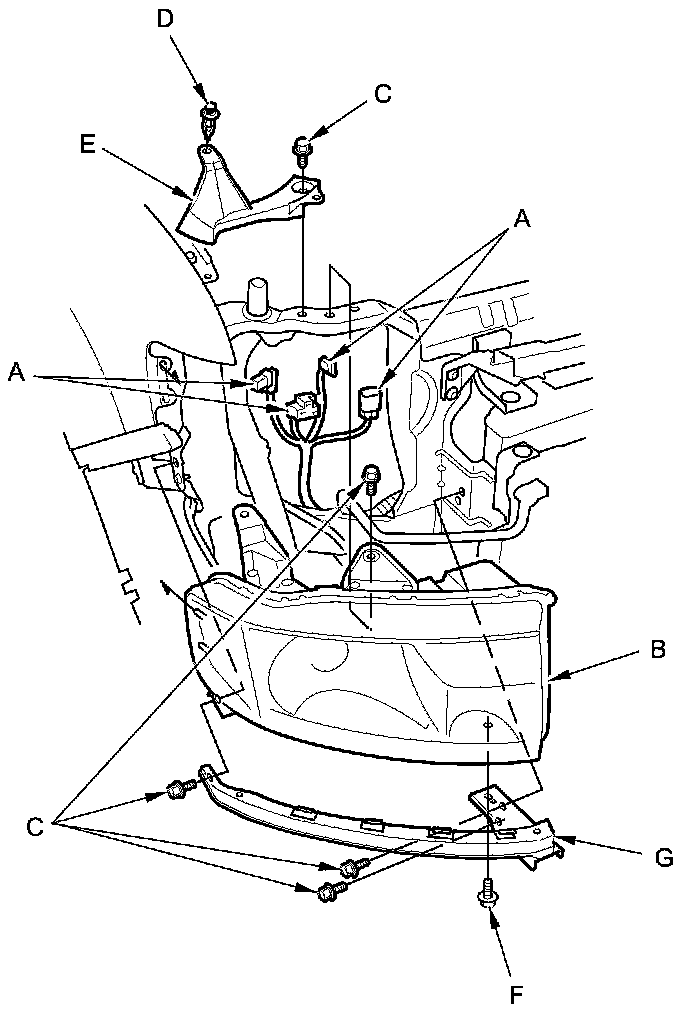

1. Remove the front bumper Removal and Replacement.

2. Disconnect the connectors (A) from the headlight (B).





3. Remove the five mounting bolts (C) and headlight assembly.

4. Disengage the clip (D) and bumper upper beam (E).

5. Remove the bolt (F) and corner upper beam (G).

6. Install the headlight in the reverse order of removal.

7. After replacement, adjust the headlights Adjustments.
