Drive Belt Auto-Tensioner Removal/Installation

Drive Belt Auto-Tensioner Removal/Installation

1. Remove the drive belt Service and Repair.

2. Remove the power steering pump without disconnecting the power steering hoses.

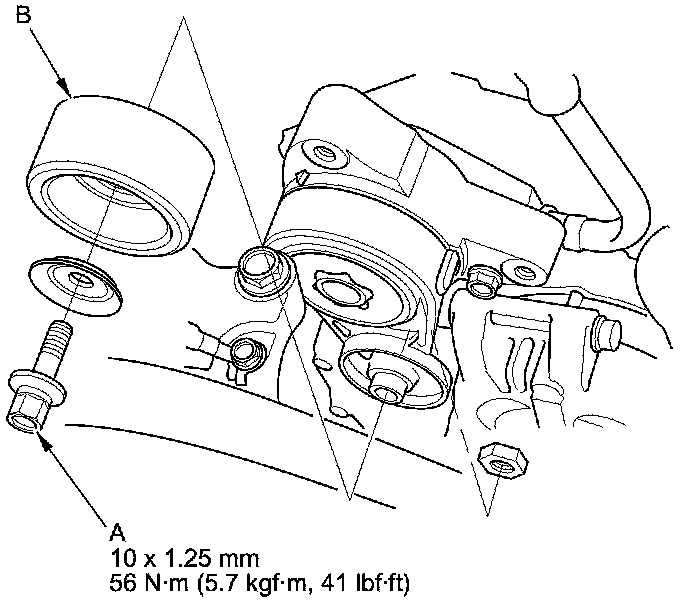

3. Remove the pulley bolt (A), and remove the tensioner pulley (B).

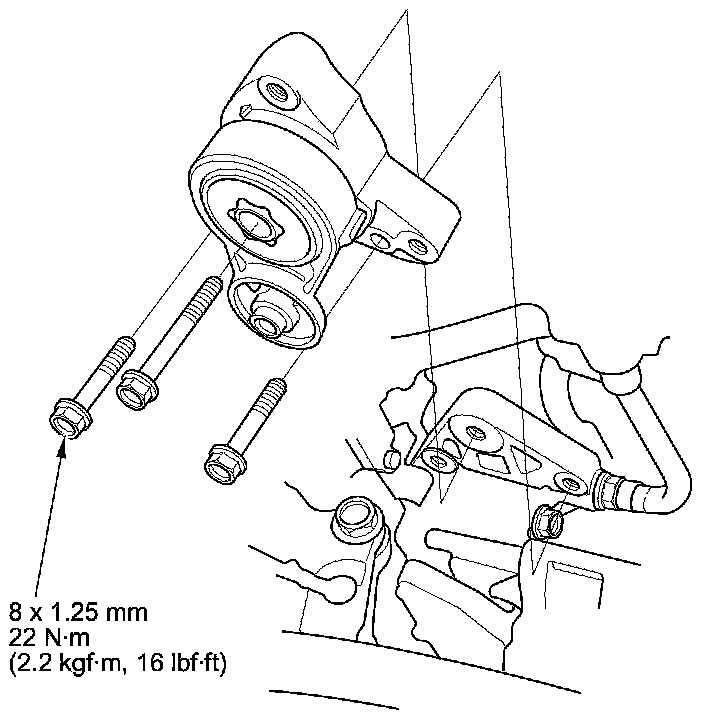

4. Remove the auto-tensioner.





5. Install the auto-tensioner in the reverse order of removal.
