Engine Compartment Wire Harness (Right Branch)

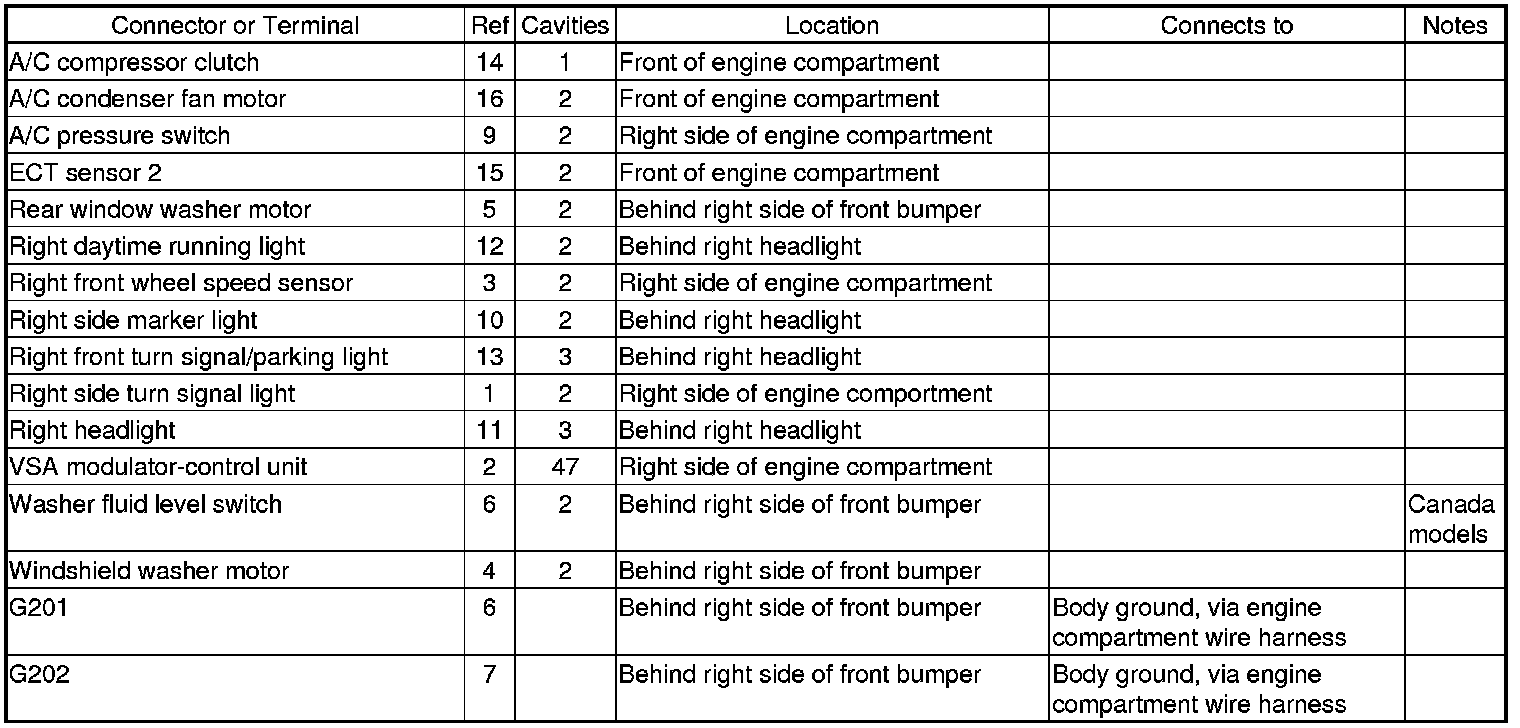

Connector and Harness Locations

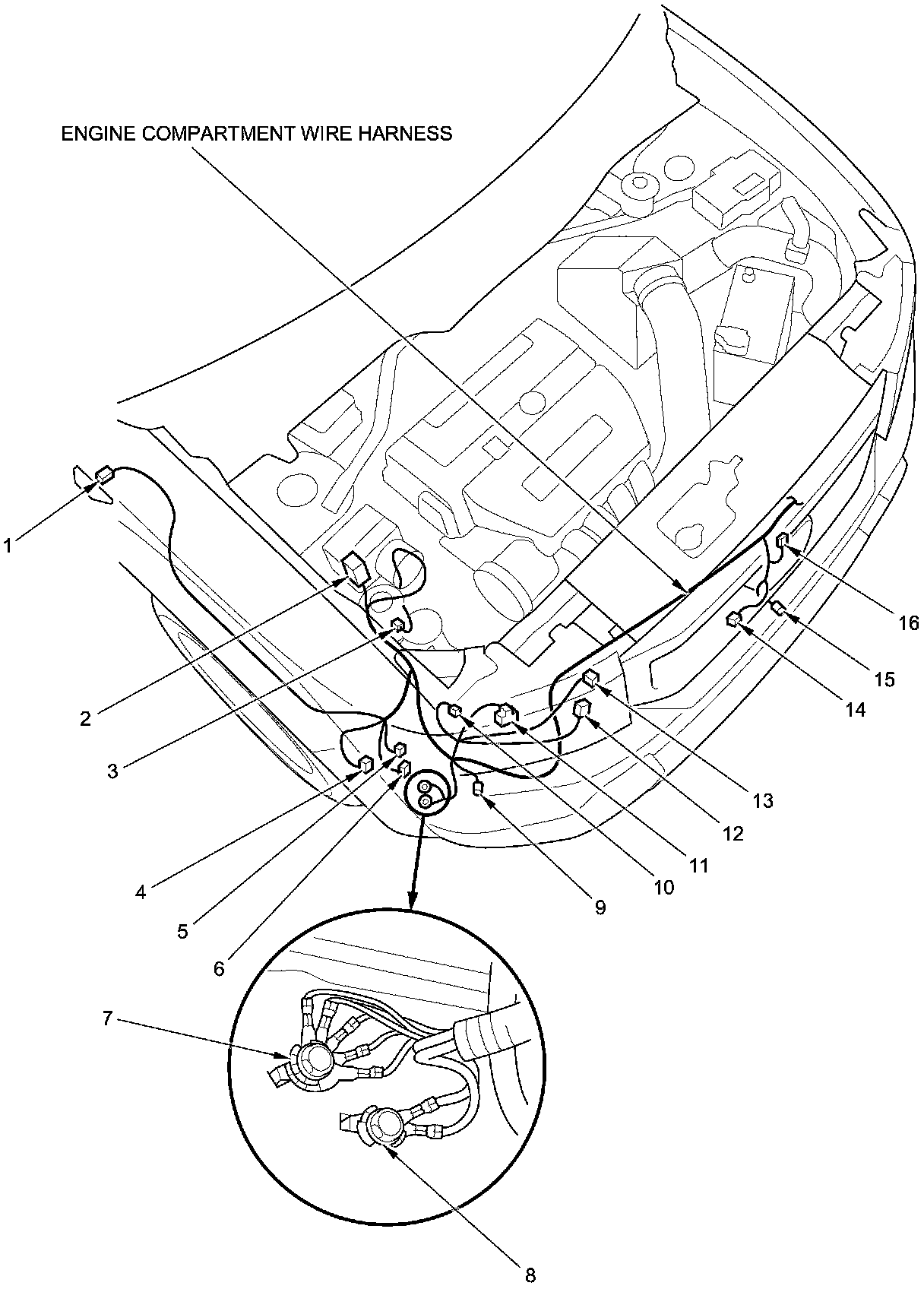

Engine Compartment Wire Harness (Right branch) ('09-11 models)
