Dashboard Wire Harness A (Right Branch) (With Navigation)

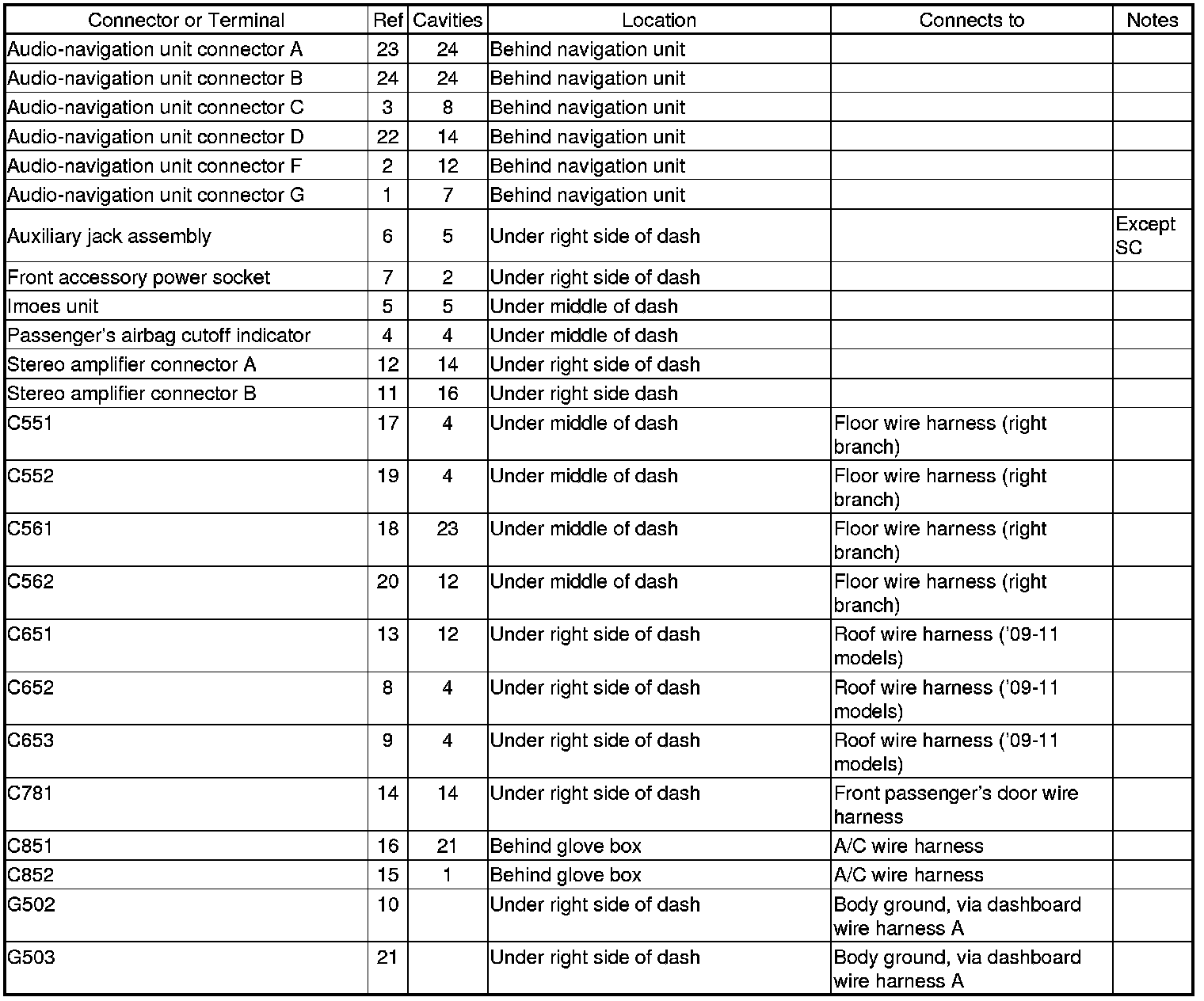

Connector and Harness Locations

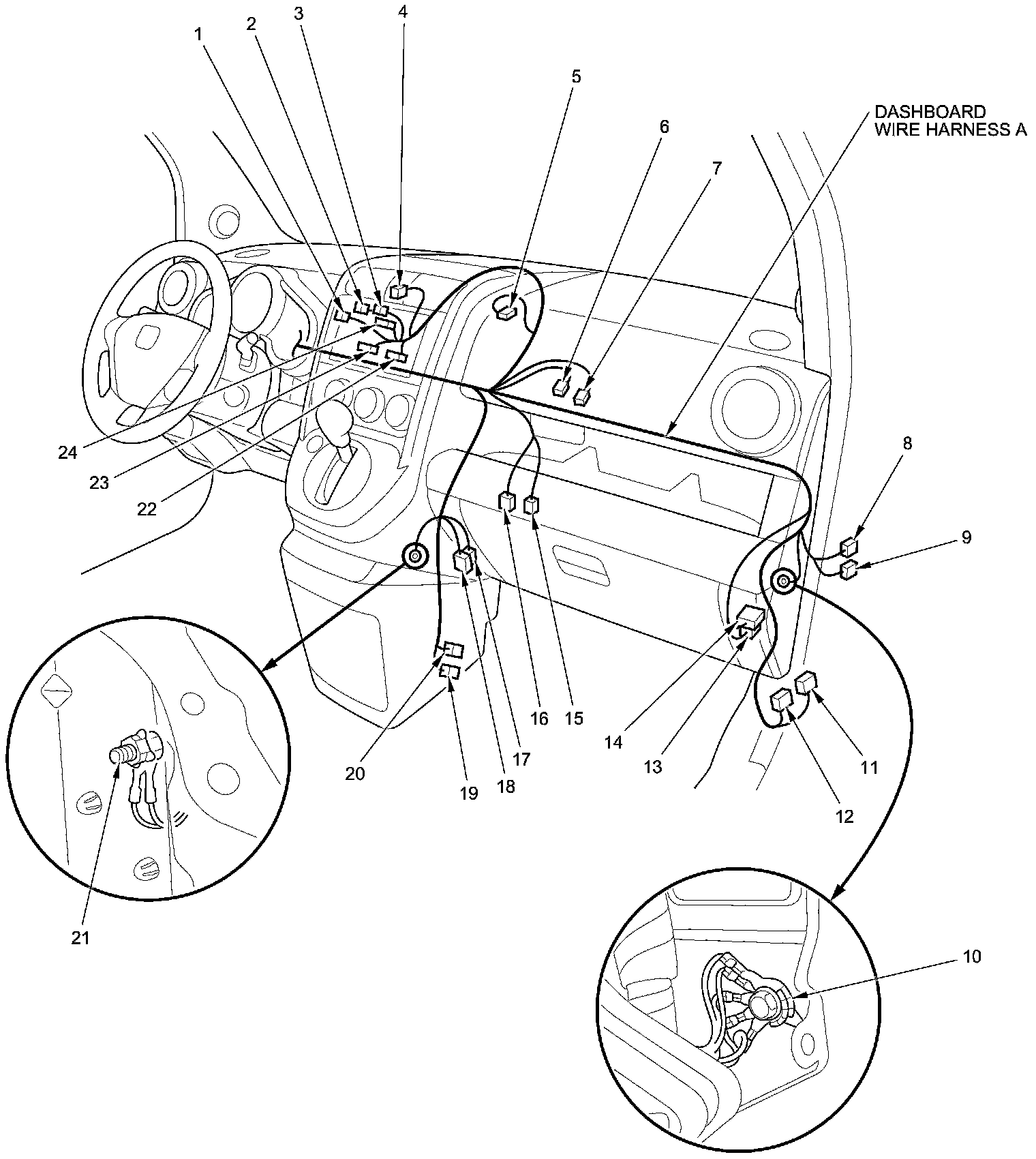

Dashboard Wire Harness A (Right branch) ('09-11 models with navigation)
