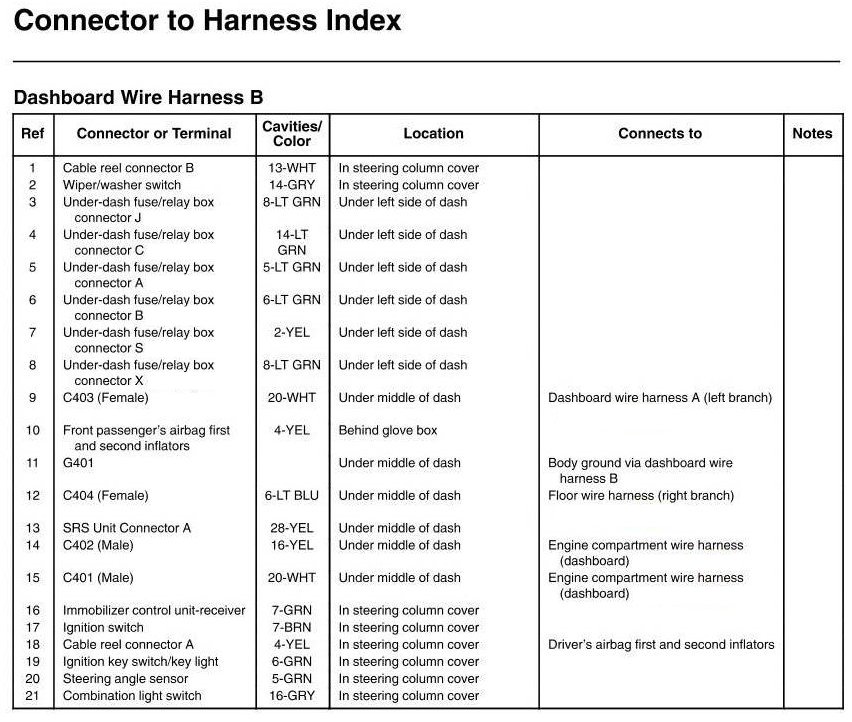

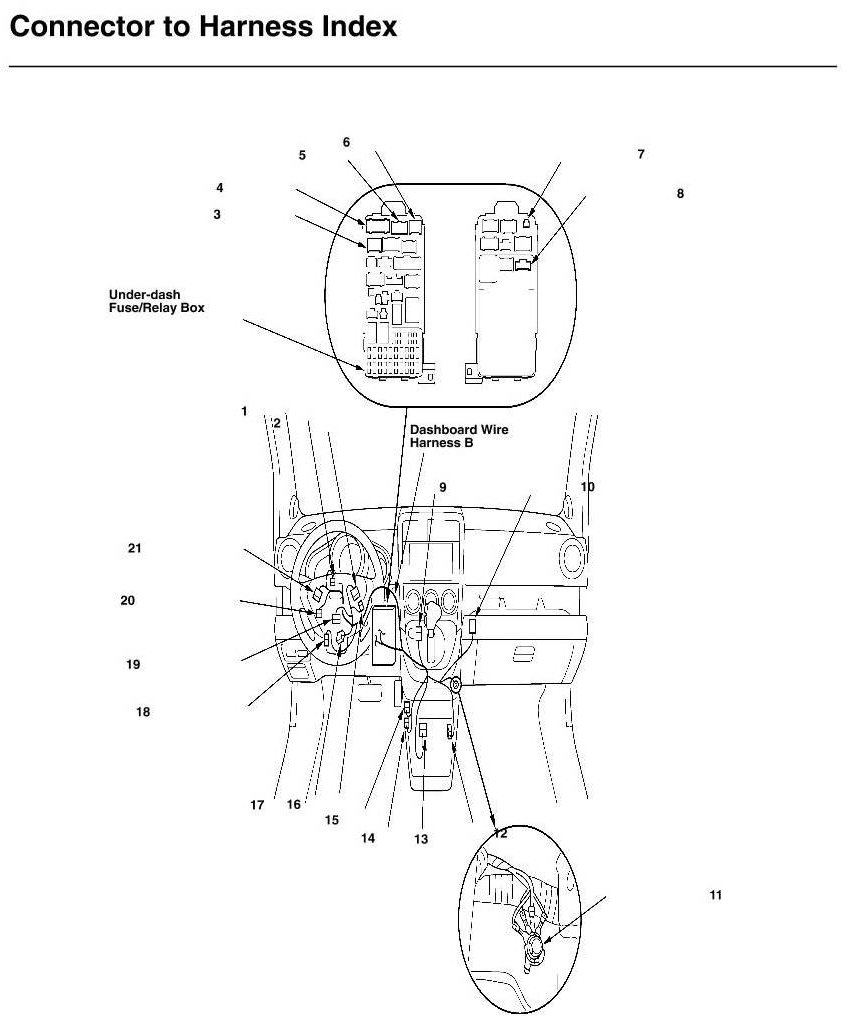

Dashboard Wire Harness B Connector And Harness Locations
Dashboard Wire Harness B Connector And Harness Locations
