Home >> Honda >> 2010 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Harness >> Dashboard Wire Harness A (Left Branch) and Tweeter Subharness Connector and Harness Locations

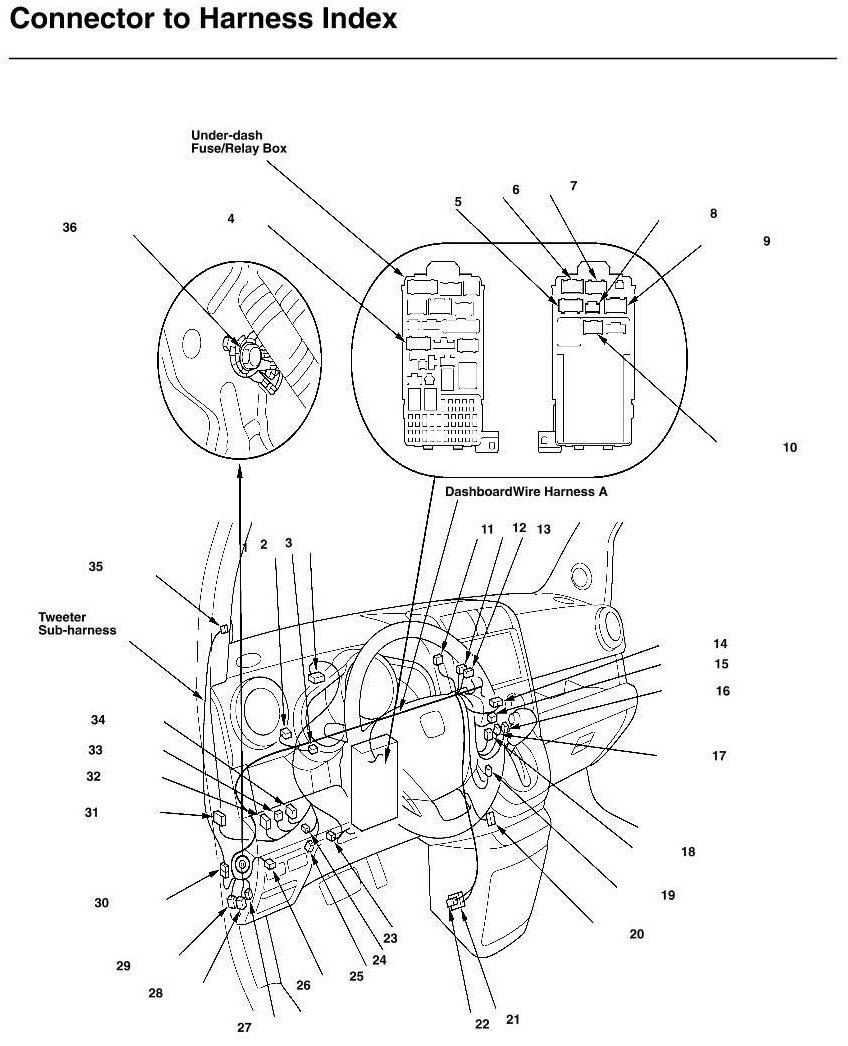

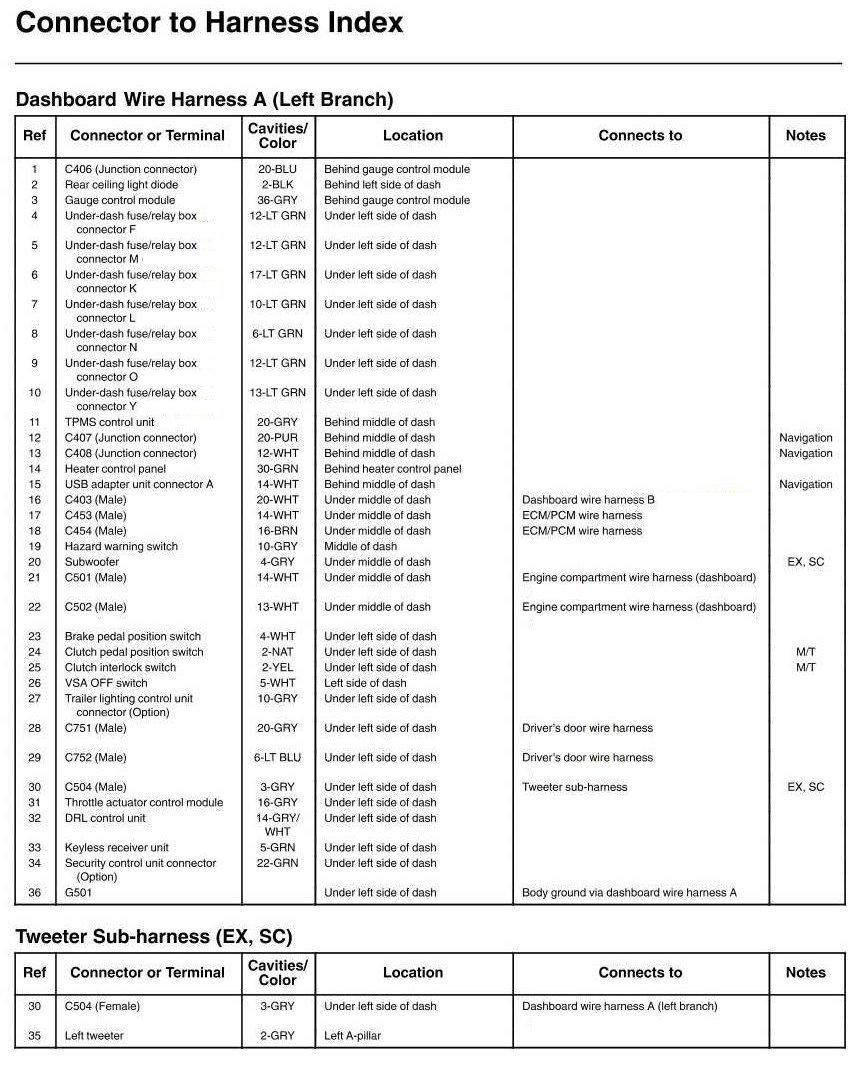

Dashboard Wire Harness A (Left Branch) and Tweeter Subharness Connector and Harness Locations
