Honda
>>
2010
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Tail Lamp
>>

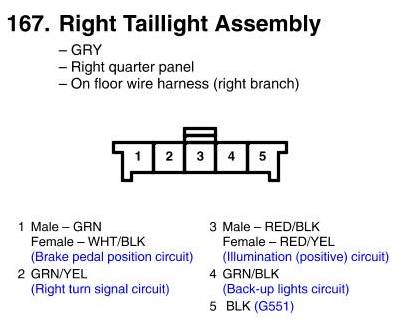

Right Taillight Assembly Connector View
Right Taillight Assembly Connector View
