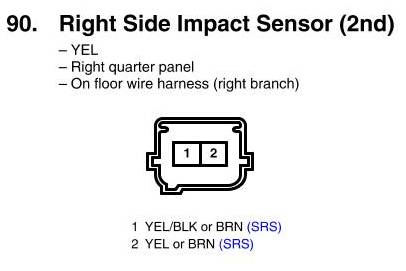

View 90 - Right Side Impact Sensor (2nd) Connector View
View 90 - Right Side Impact Sensor (2nd) Connector View
