Home >> Honda >> 2010 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 227 - C407 (Junction Connector) Connector View (Navigation)

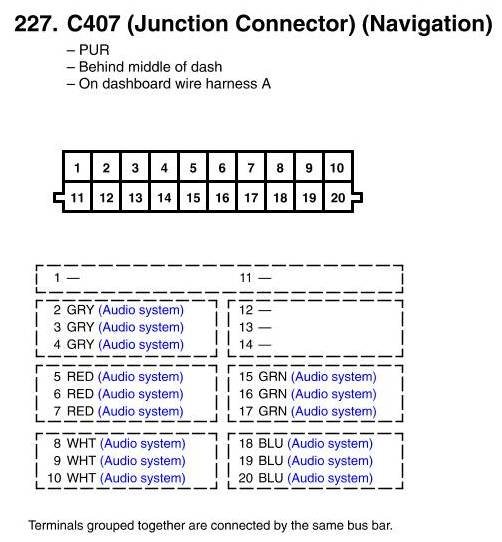

View 227 - C407 (Junction Connector) Connector View (Navigation)
