Home
>>
Honda
>>
2010
>>
Element 2WD L4-2.4L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By View Number
>>

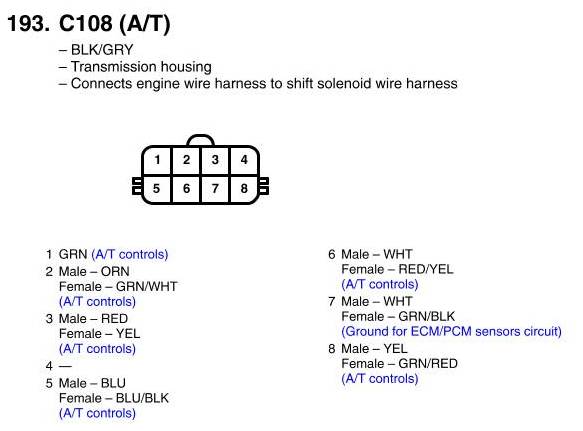

View 193 - C108 Connector View (A/T)
View 193 - C108 Connector View (A/T)
