Home >> Honda >> 2010 >> Element 2WD L4-2.4L >> Repair and Diagnosis >> Diagrams >> Connector Views >> Connector Views By View Number >> View 160 - Fog Light Relay Connector View (Honda Accessory)

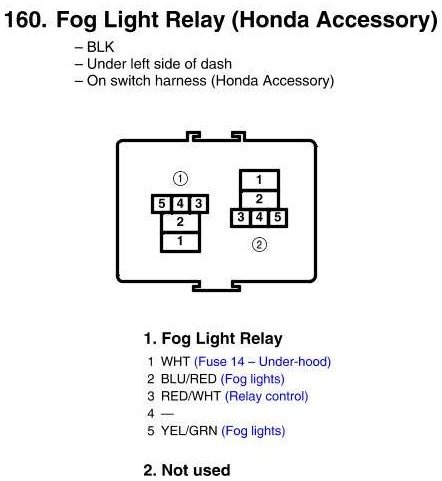

View 160 - Fog Light Relay Connector View (Honda Accessory)
