Voice Activation Microphone: Service and Repair

Microphone Replacement

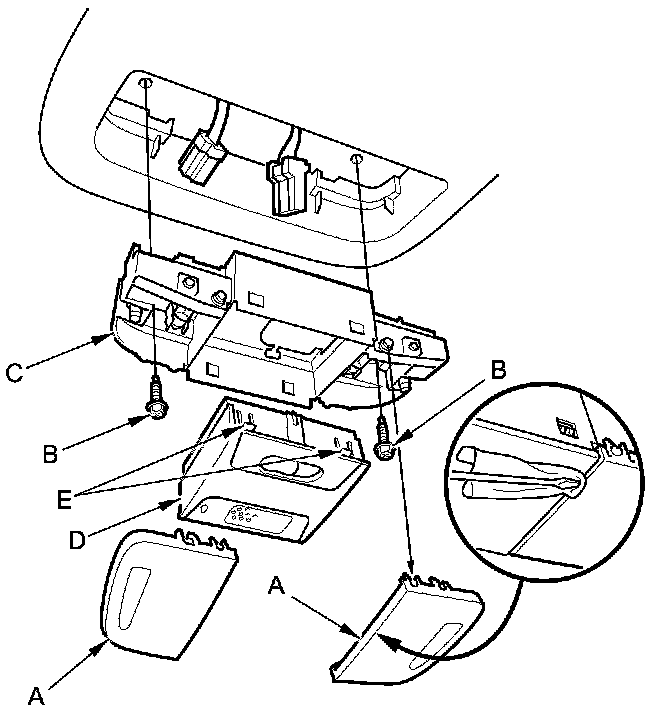

1. Remove the front individual map light lens (A).





2. Remove the bolts (B) and pull down the map light housing (C), then disconnect the connectors.

3. Carefully pry off the microphone (D) from the map light housing while pressing the retaining tabs (E).

4. Install the microphone in the reverse order of removal.
