M/T Differential Oil Seal Replacement

M/T Differential Oil Seal Replacement

Special Tools Required

- Driver Handle, 15 x 135L 07749-0010000
- Oil Seal Driver Attachment 07NAD-P20A100

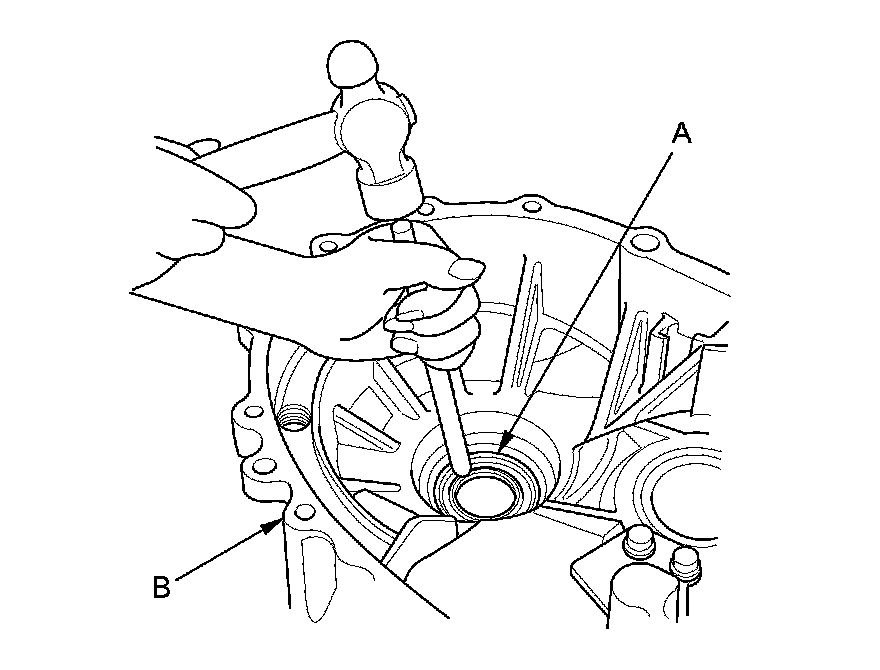

1. Remove the oil seal (A) from the transmission housing (B).

NOTE: Be careful not to damage the transmission housing while removing the oil seal.






2. Remove the oil seal (A) from the clutch housing (B).

NOTE: Be careful not to damage the clutch housing while removing the oil seal.

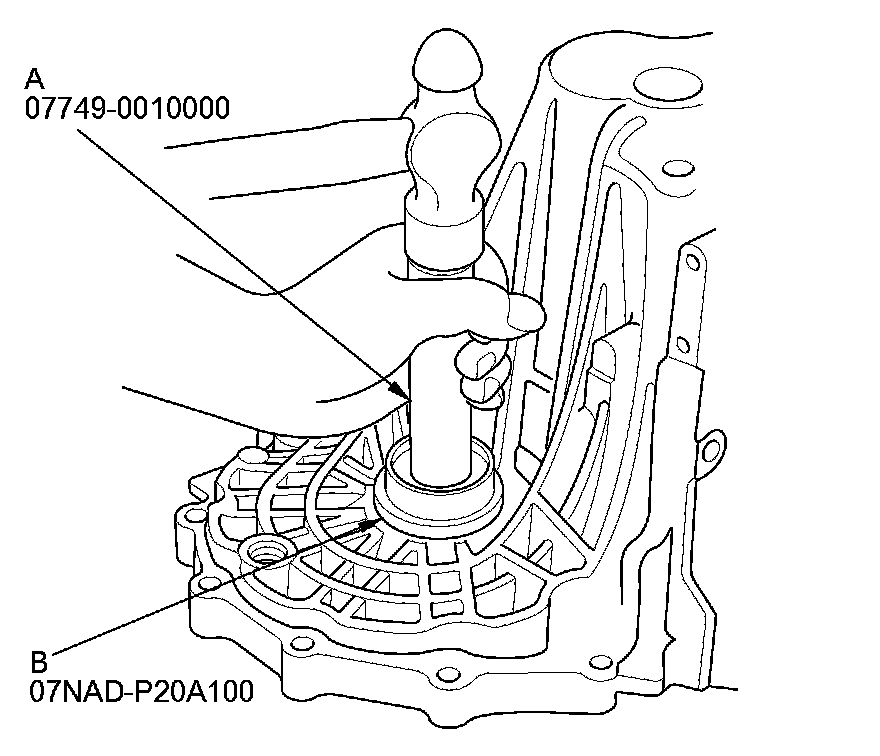

3. Install a new oil seal flush with the transmission housing using the 15 x 135L driver handle (A) and the oil seal driver attachment (B).

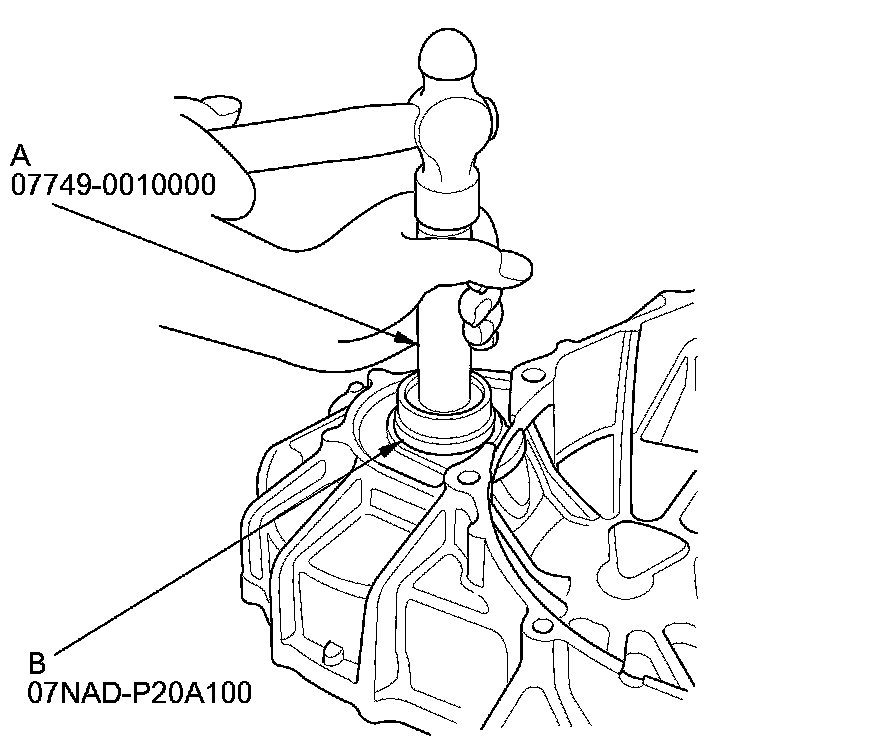

4. Install a new oil seal flush with clutch housing using the 15 x 135L driver handle (A) and the oil seal driver attachment (B).
