M/T Differential Backlash Inspection

M/T Differential Backlash Inspection

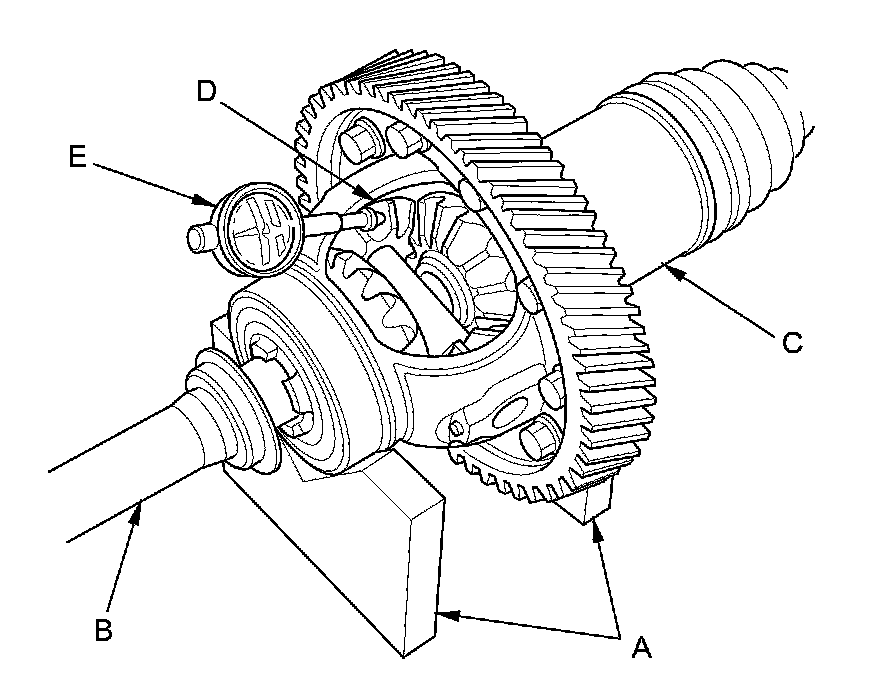

1. Place the differential assembly on V-blocks (A), and install the intermediate shaft (B) and the left driveshaft (C).





2. Measure the backlash of both pinion gears (D) with a dial indicator (E). If the backlash is not within the standard, check the differential carrier condition, and replace it if necessary.
