Hydraulic Hose: Service and Repair

Clutch Hose Replacement

NOTE:

- Replace the clutch hose if it is twisted, cracked, or leaks.
- Use fender covers to avoid damaging painted surfaces.
- Do not spill brake fluid on the vehicle; it may damage the paint or plastic. If brake fluid does contact the paint or plastic, wash it off immediately with water.

1. Do the battery removal procedure Removal and Replacement.

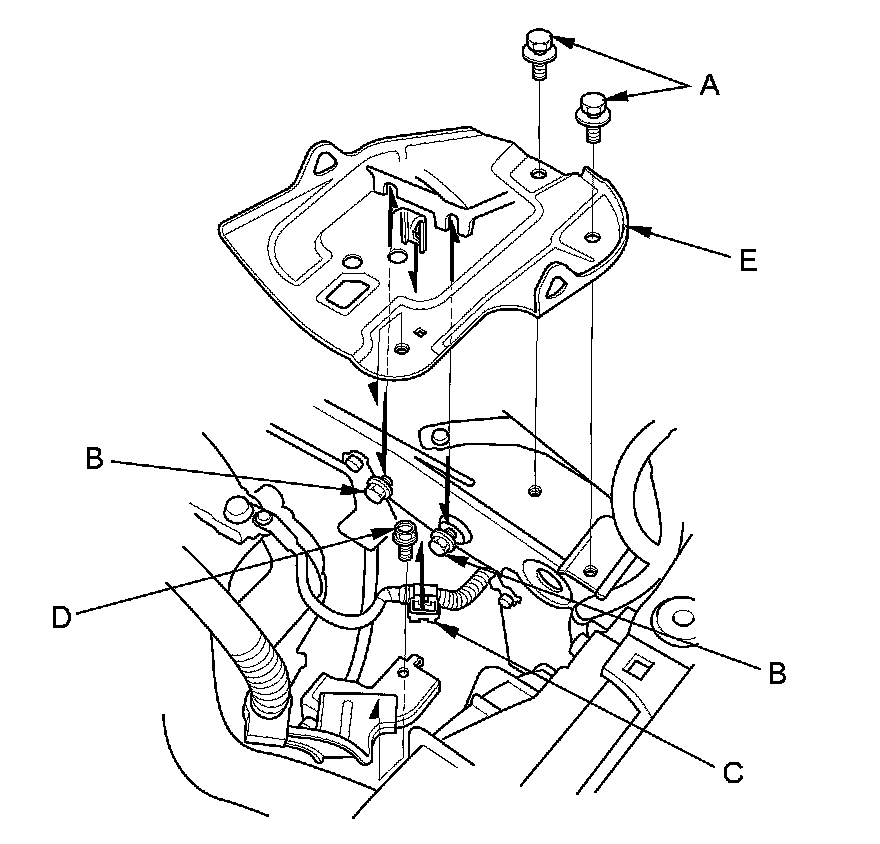

2. Remove the battery base bolts (A), loosen the two bolts (B), remove the cable clamp (C), and the harness bracket bolt (D), then remove the battery base (E).

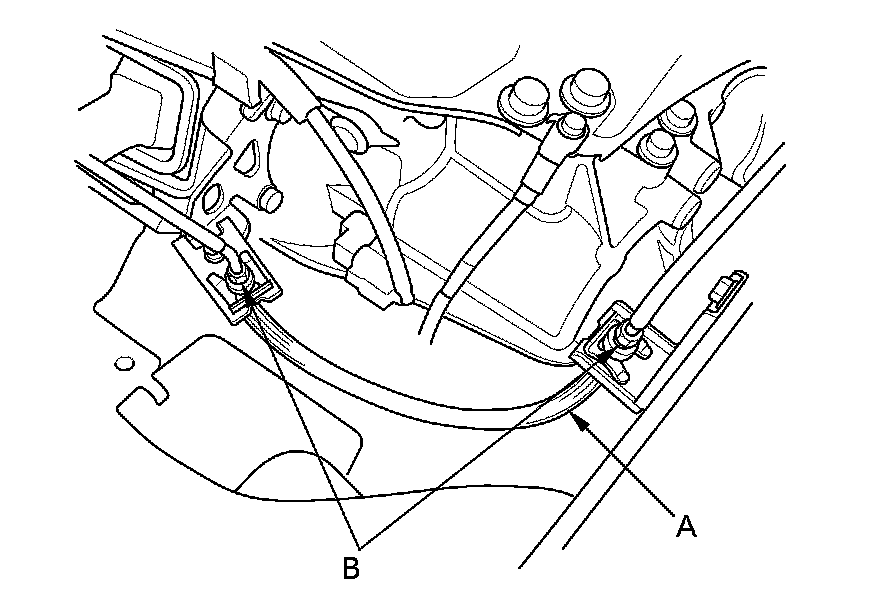

3. Disconnect the clutch hose (A) from the clutch lines (B).

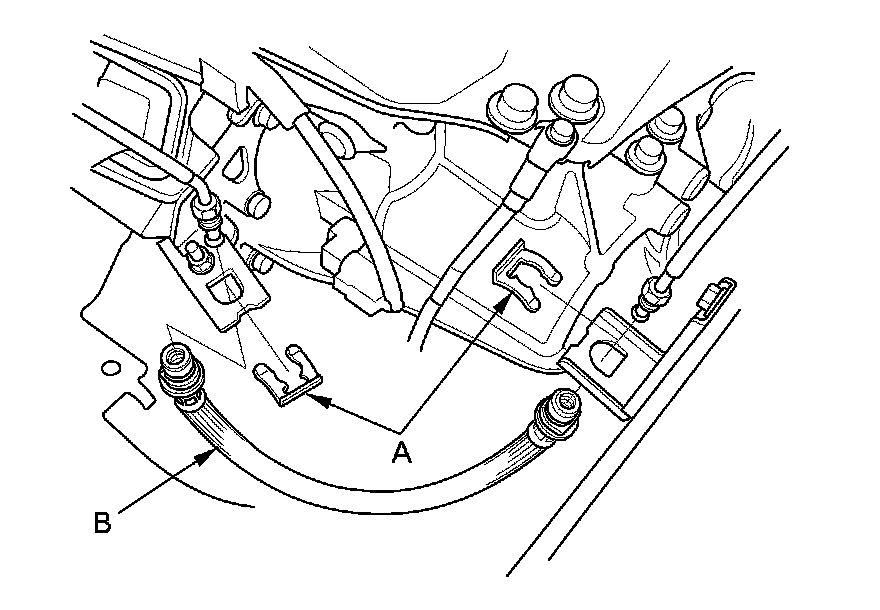

4. Remove and discard the clutch hose clips (A) from the clutch hose (B).





5. Remove the clutch hose from clutch hose brackets.

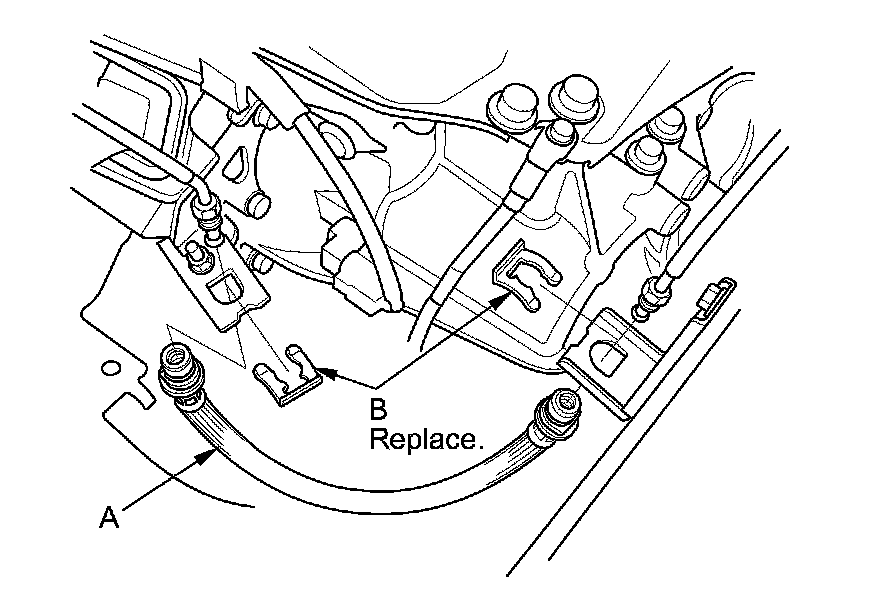

6. Install the clutch hose (A) into the clutch hose brackets with new clutch hose clips (B).

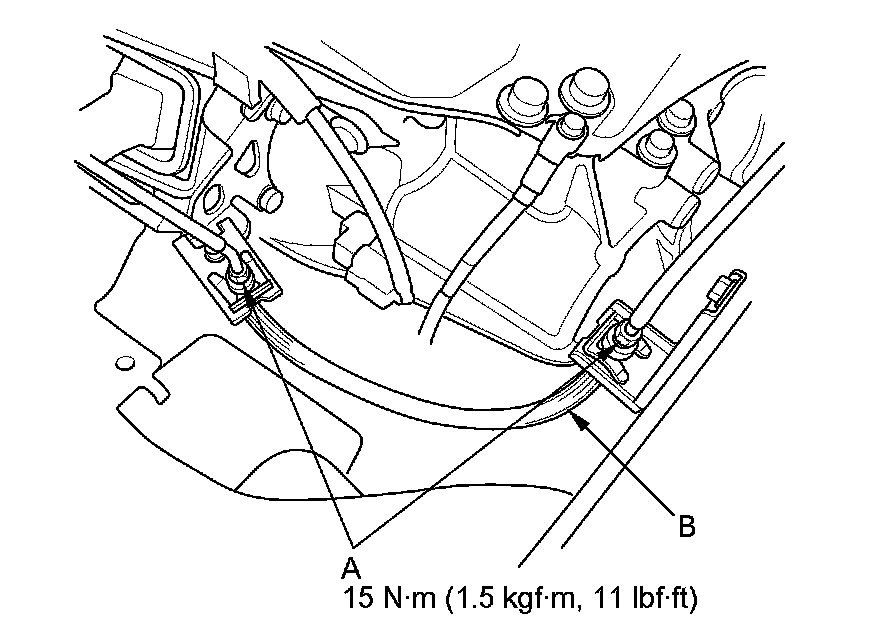

7. Connect the clutch lines (A) to the clutch hose (B).





8. Bleed the clutch hydraulic system Service and Repair.

9. Do the following checks:

- Check the clutch hose and line joint for leaks, and tighten if necessary.
- Check the clutch hose for interference and twisting.

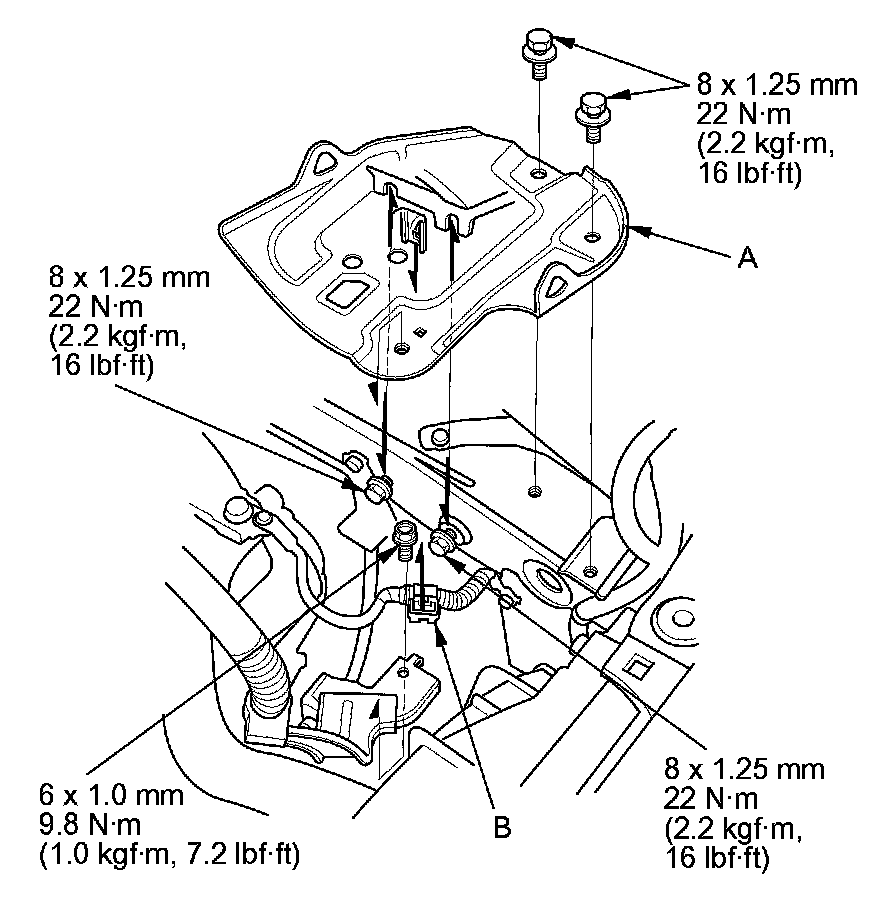

10. Install the battery base (A) and the cable clamp (B).





11. Do the battery installation procedure Removal and Replacement.

12. Test-drive the vehicle.
