Transmission End Cover Park Lever Stop Inspection and Adjustment (A/T)

Transmission End Cover Park Lever Stop Inspection and Adjustment

1. Set the park lever in the P position.

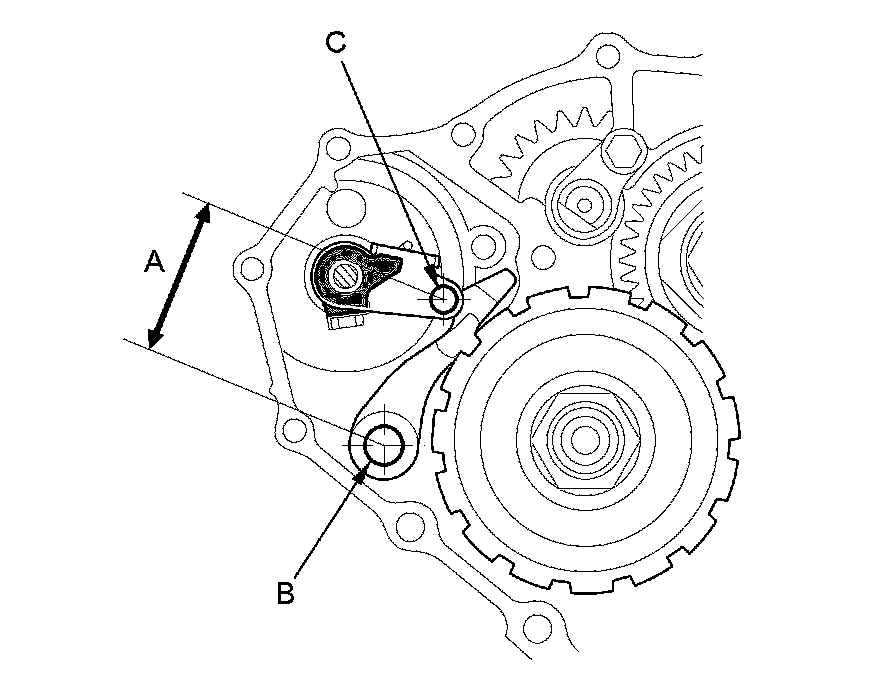

2. Measure the distance (A) between the park pawl shaft (B) and the park lever roller pin (C).










3. If the measurement is out of standard, select and install the appropriate park lever stop (A) from the table.






PARK LEVER STOP





4. After replacing the park lever stop, make sure the distance is within tolerance.
