Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

Transmission Fluid Pressure Switch B (3rd Clutch) Replacement

1. Raise the vehicle on a lift, or apply the parking brake, block both rear wheels, and raise the front of the vehicle. Make sure it is securely supported.

2. Remove the splash shield.

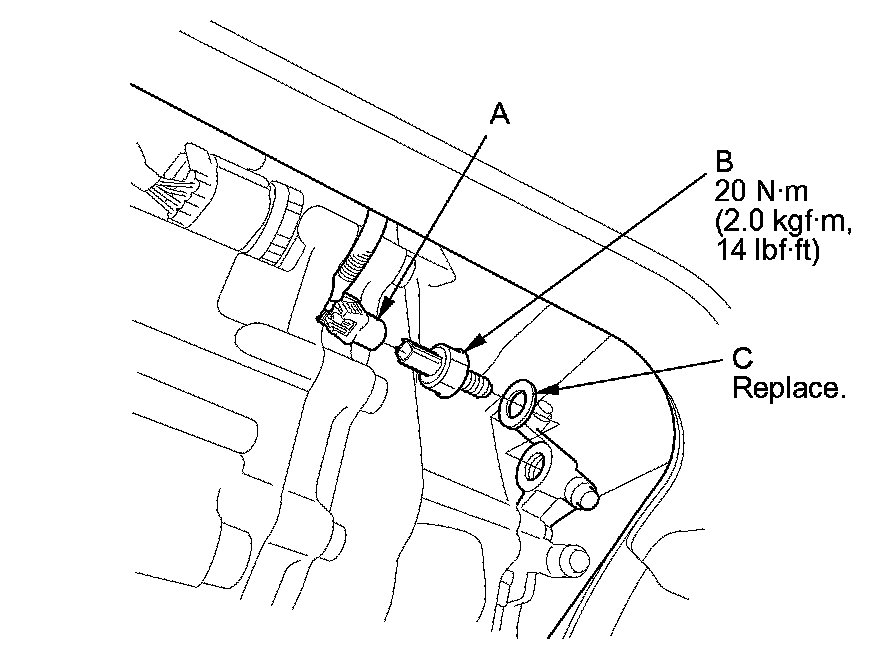

3. Disconnect the connector (A) from the transmission fluid pressure switch B (3rd clutch) (B), then remove the transmission fluid pressure switch B (3rd clutch).





4. Install a new transmission fluid pressure switch B (3rd clutch) with a new sealing washer (C), and tighten the transmission fluid pressure switch B (3rd clutch) to the specified torque by turning the metal part, not the plastic part.

5. Check the connector for rust, dirt, or oil, and clean or repair if necessary, then connect the connector securely.

6. Install the splash shield.
