Leak Detection Solenoid: Service and Repair

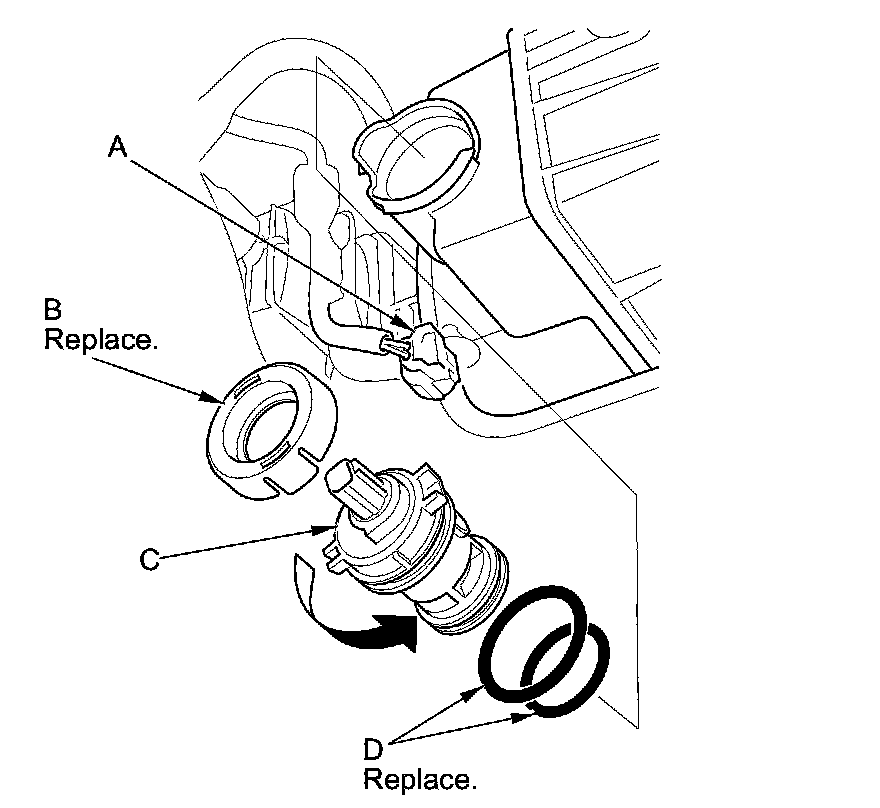

EVAP Canister Vent Shut Valve Replacement

1. Disconnect the EVAP canister vent shut valve 2P connector (A).

2. Remove the cap (B).





3. Remove the EVAP canister vent shut valve (C).

4. Install the parts in the reverse order of removal with new O-rings (D) and a new cap.

NOTE: Do not coat the O-rings with oil.
