Home >> Honda >> 2010 >> Accord L4-2.4L >> Repair and Diagnosis >> Power and Ground Distribution >> Relay Box >> Application and ID >> Driver's Under-dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index

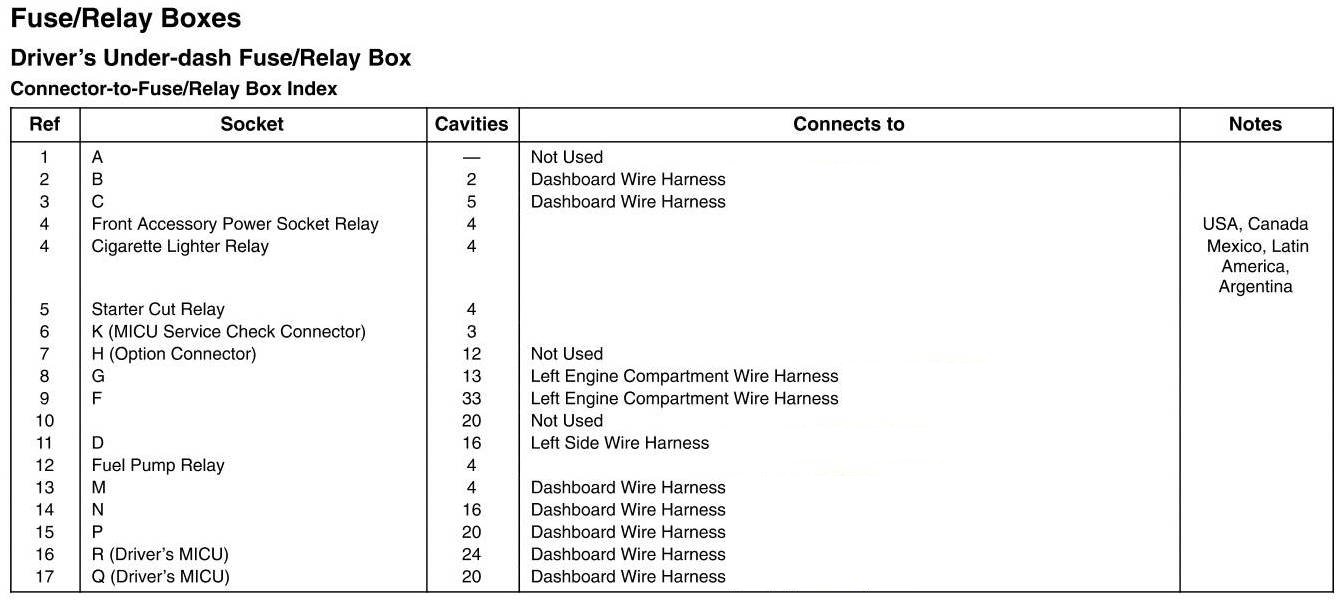

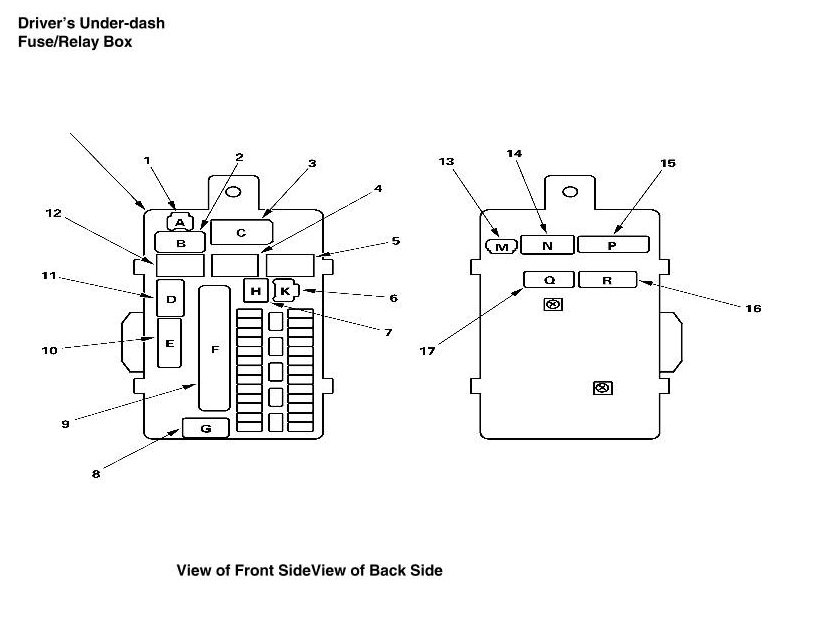

Driver's Under-dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index
