Right Side Wire Harness, ANC Rear Microphone Subharness (4-Door)

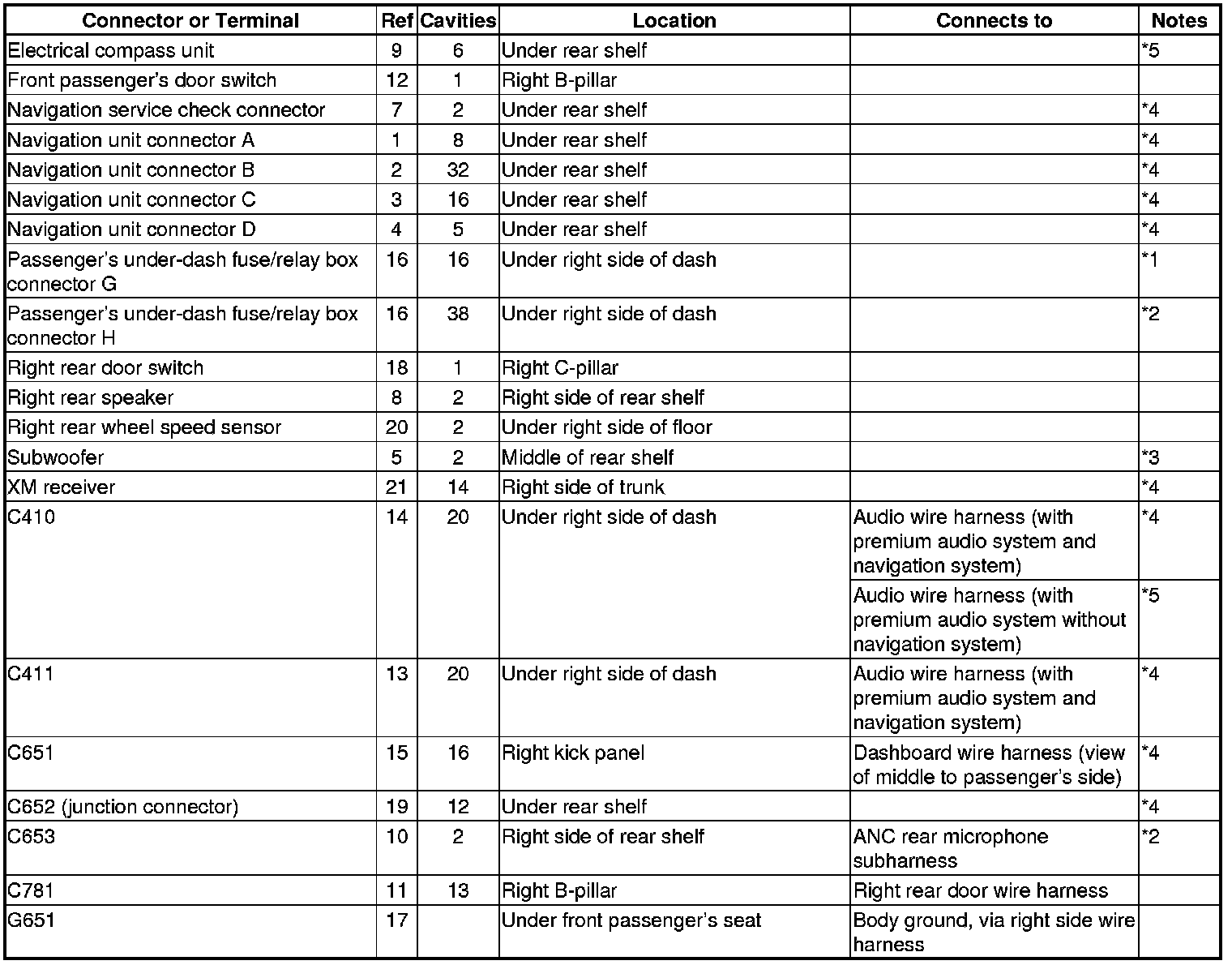

Connector and Harness Locations
Right Side Wire Harness (4-door)
ANC Rear Microphone Subharness (4-door) (Except LX, LX PZEV, LX-P, LX-P PZEV)

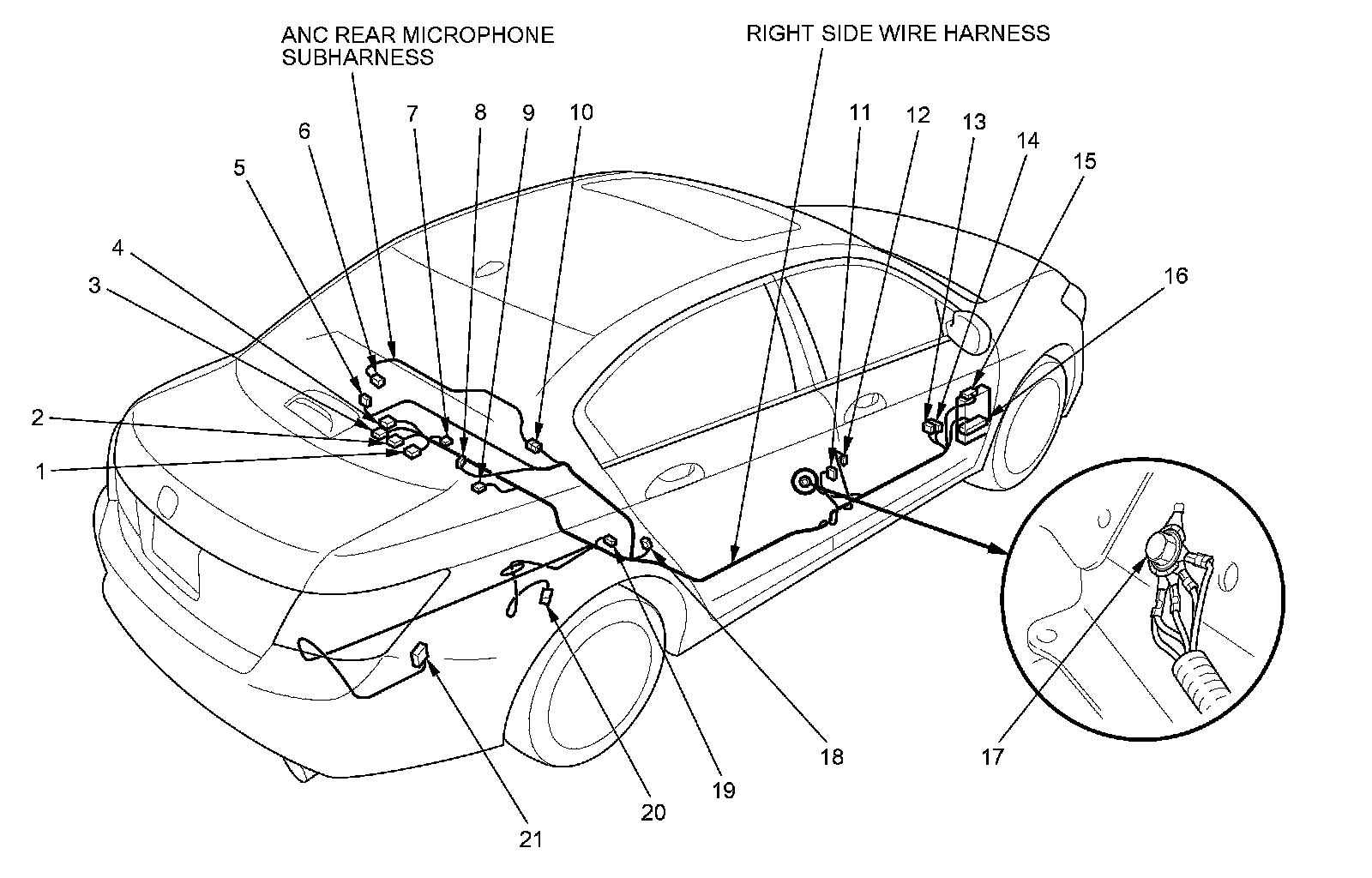

Harness View
Connector and Harness Locations
Right Side Wire Harness (4-door)
ANC Rear Microphone Subharness (4-door) (Except LX, LX PZEV, LX-P, LX-P PZEV)
Harness View
