Right Engine Compartment Wire Harness
Right Engine Compartment Wire Harness

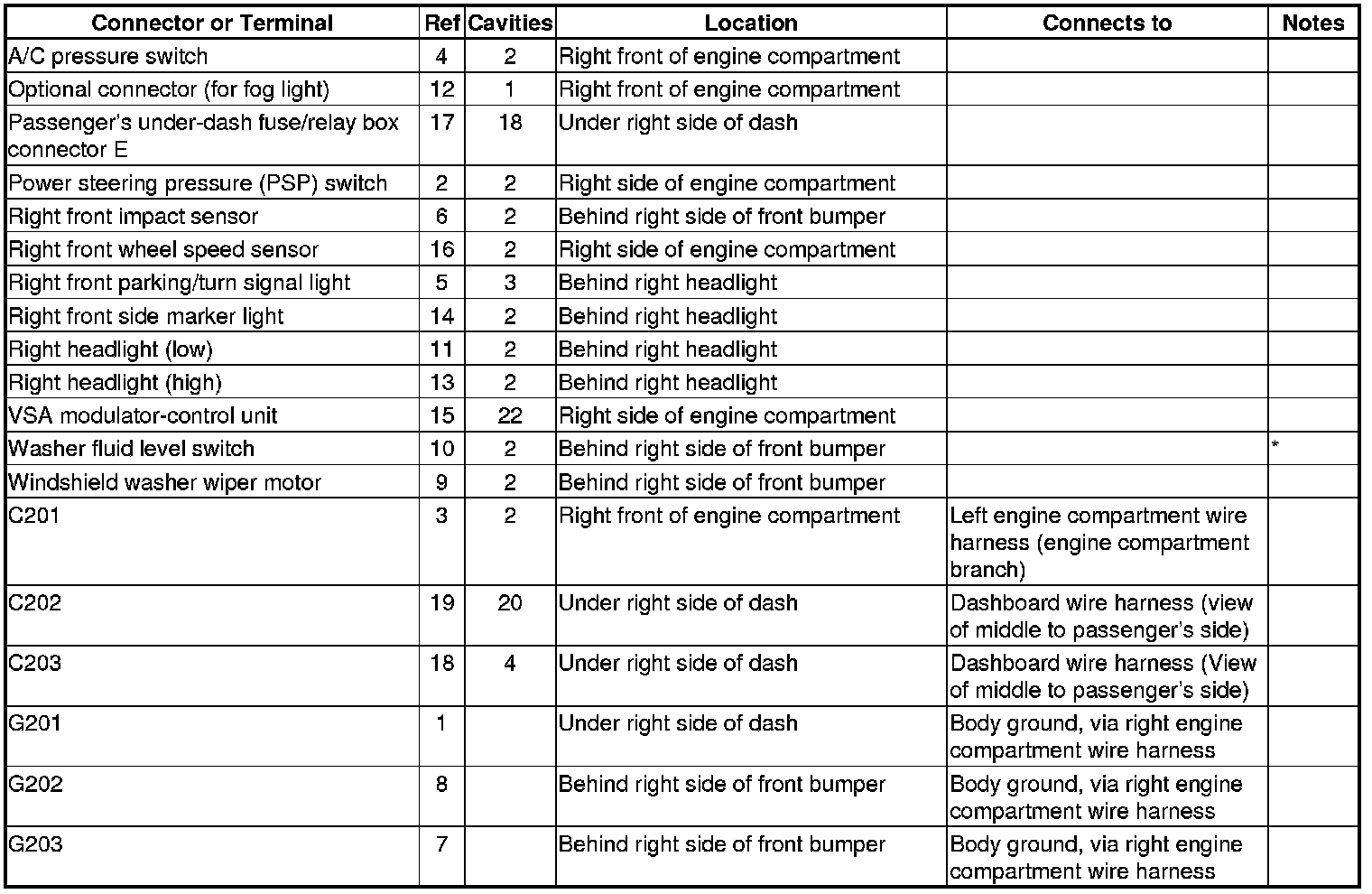

Connector and Harness Locations
Right Engine Compartment Wire Harness

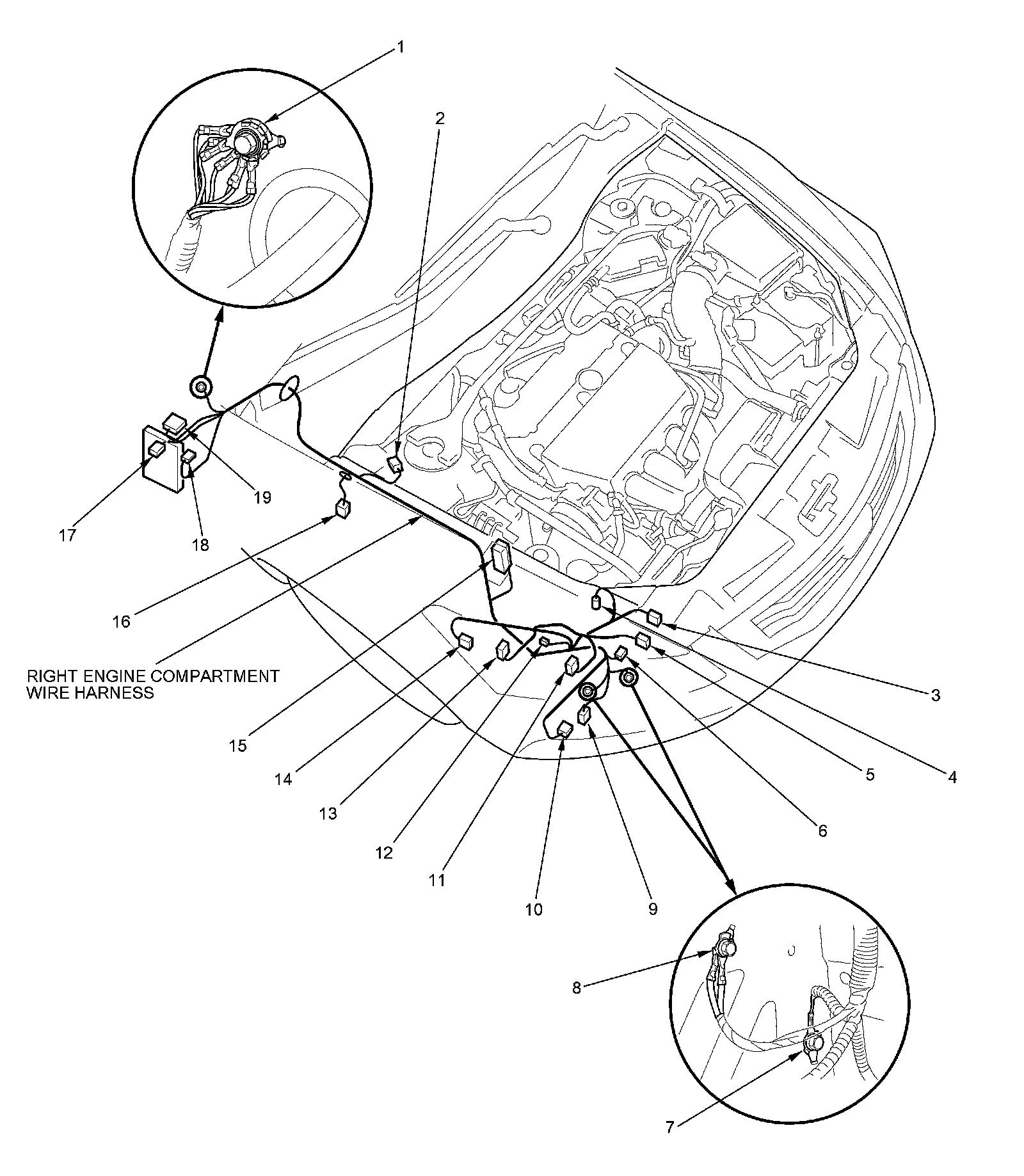

Harness View
