LEMON Manuals
: Even more car manuals for everyone
Home
>>
Honda
>>
2010
>>
Accord L4-2.4L
>>
Repair and Diagnosis
>>
Locations
>>
Harness Locations
>>
Engine Wire Harness (M/T)
Engine Wire Harness (M/T)

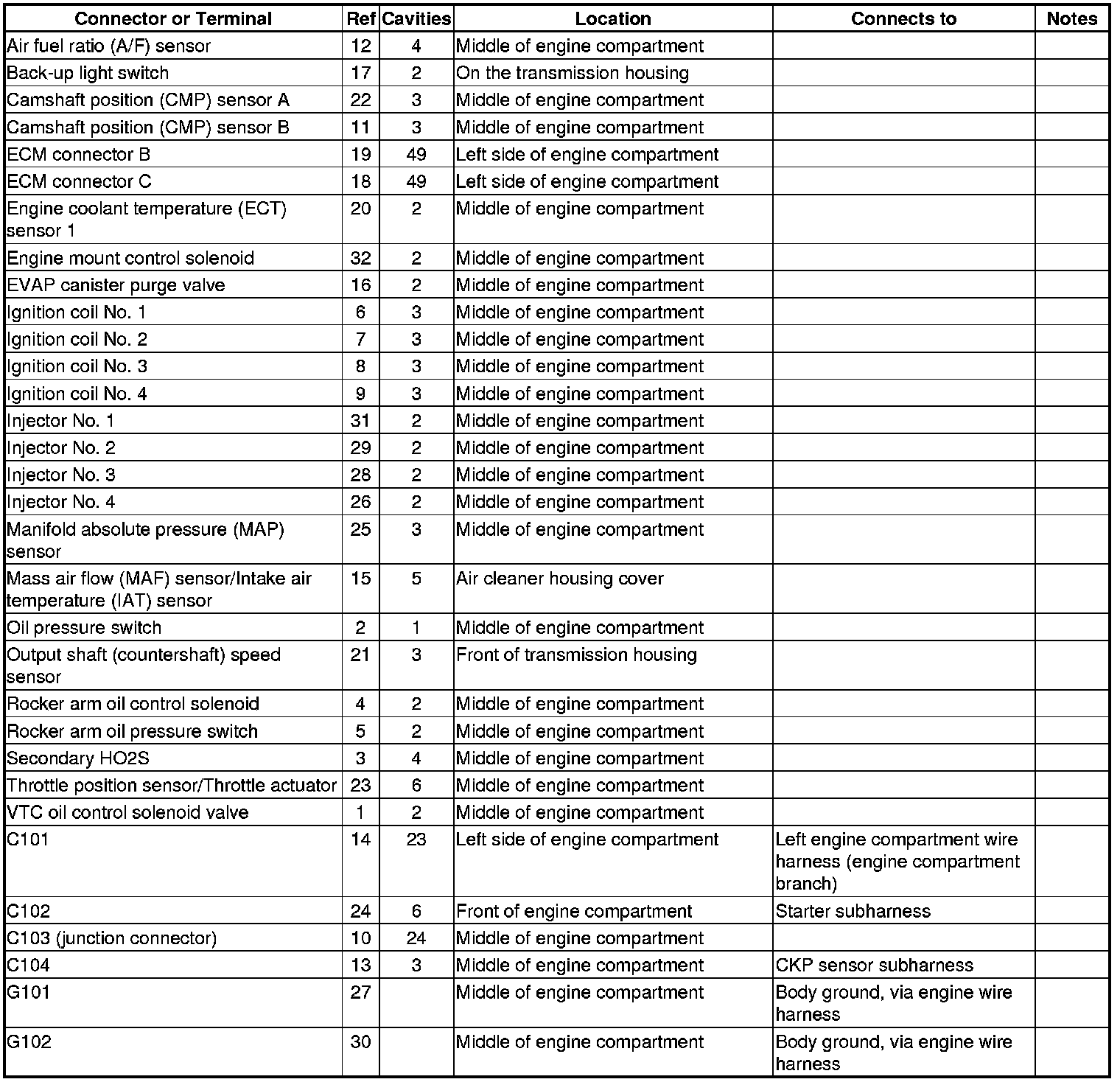

Connector and Harness Locations
Engine Wire Harness (M/T)

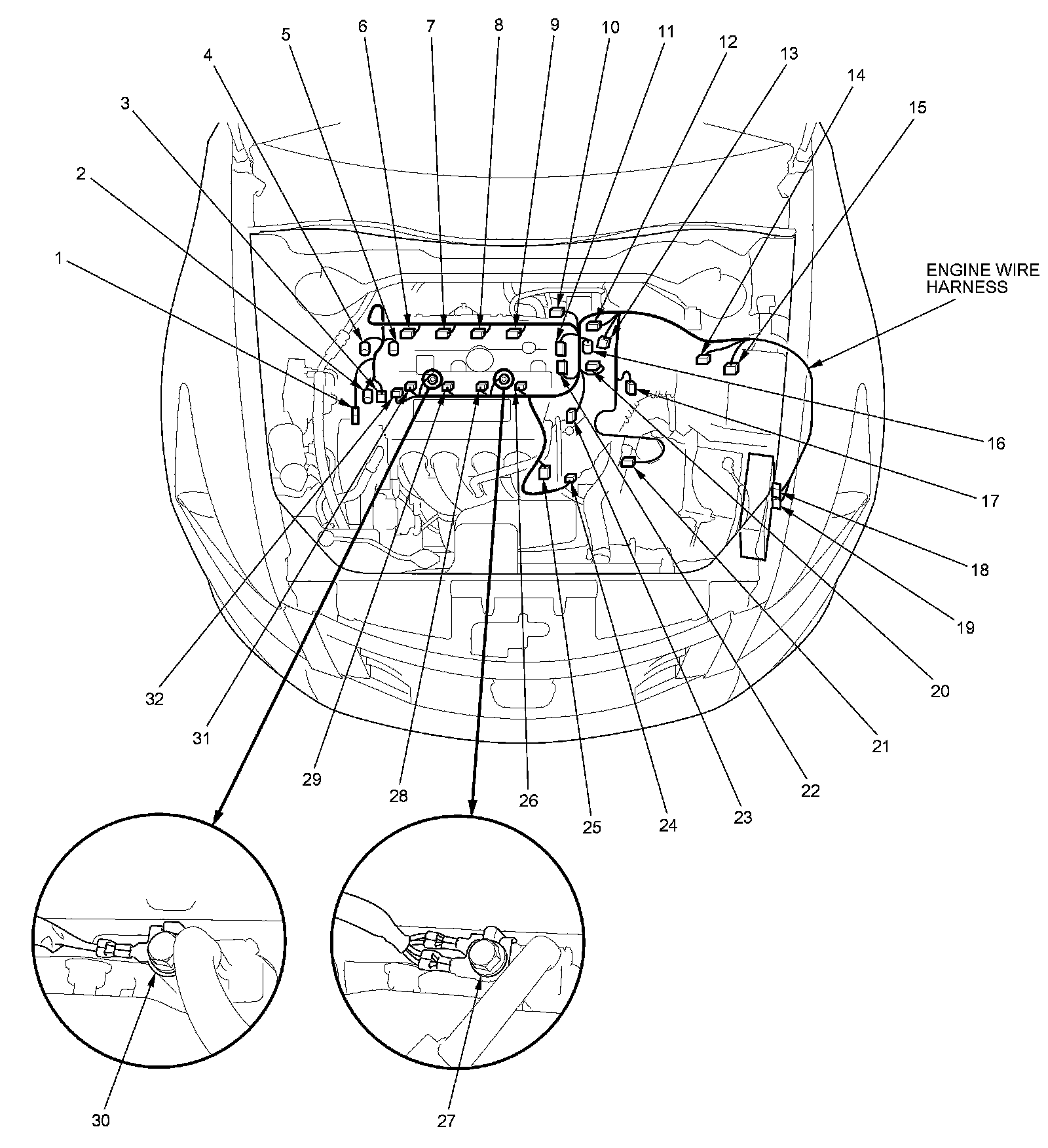

Harness View
