Locations
>>
Harness Locations
>>
Engine Wire Harness (A/T)
Engine Wire Harness (A/T)

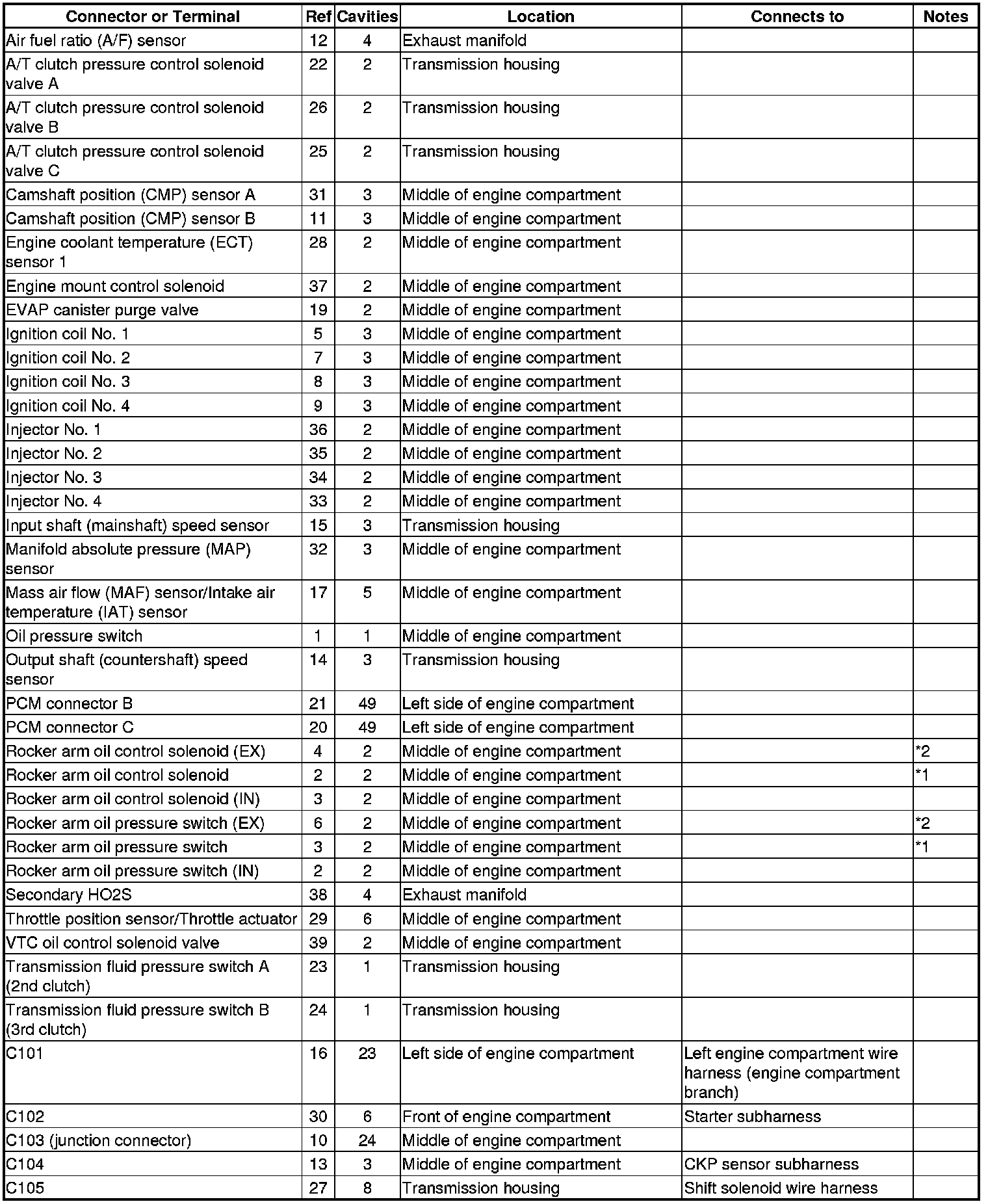

Connector and Harness Locations

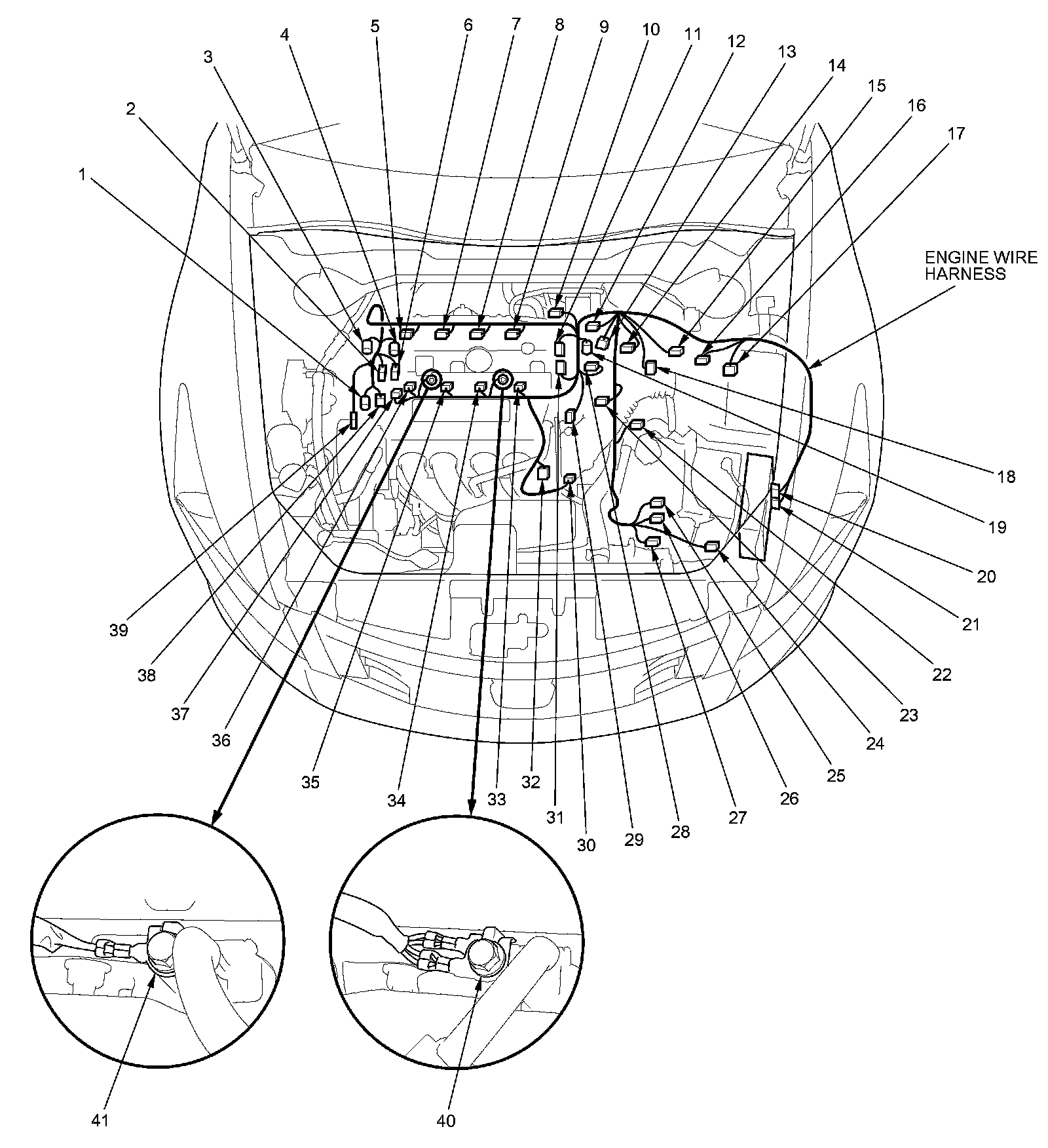

Engine Wire Harness (A/T)
Harness View
