Dashboard Wire Harness (View of Driver's Side)
Dashboard Wire Harness (View of Driver's Side)

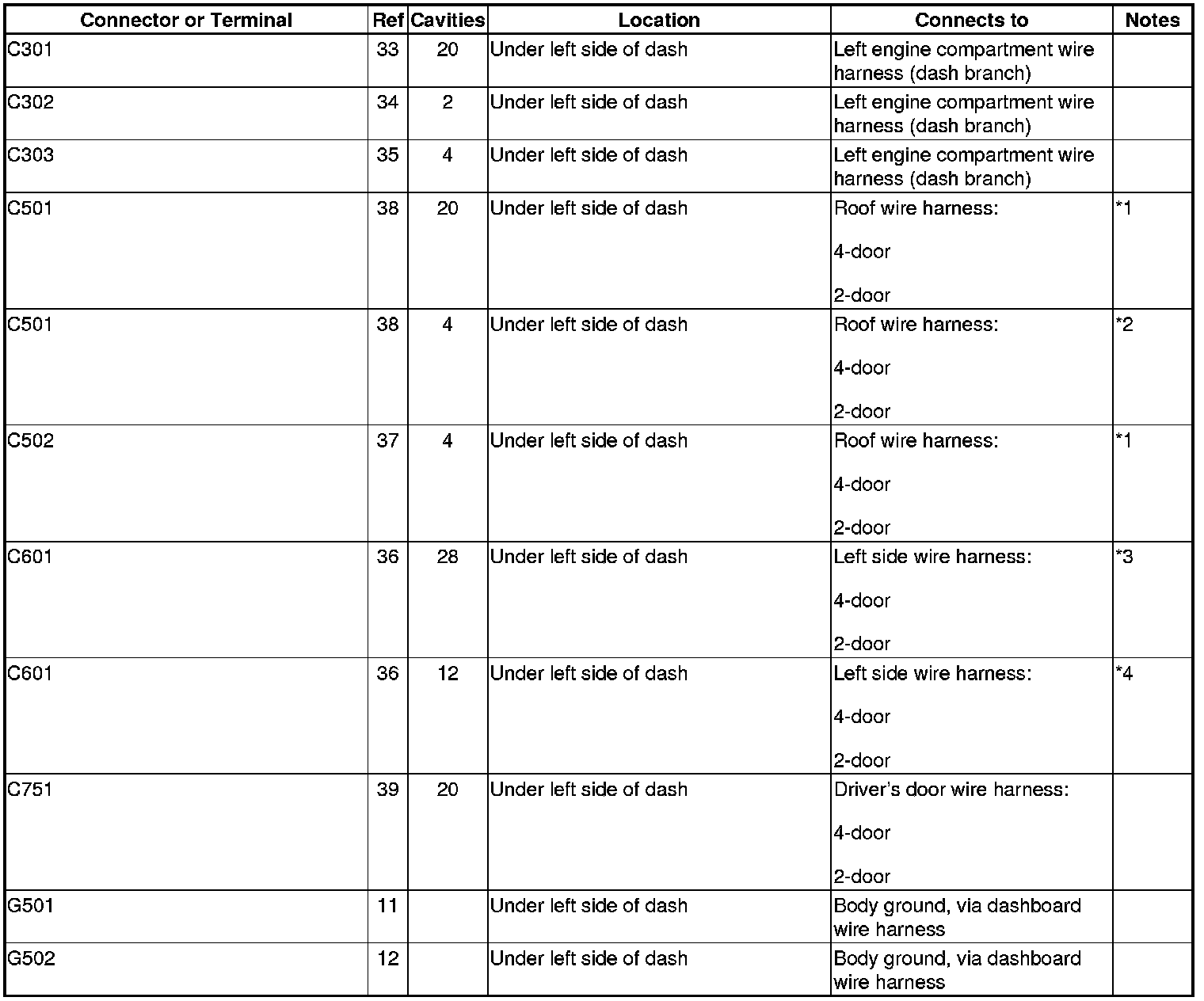

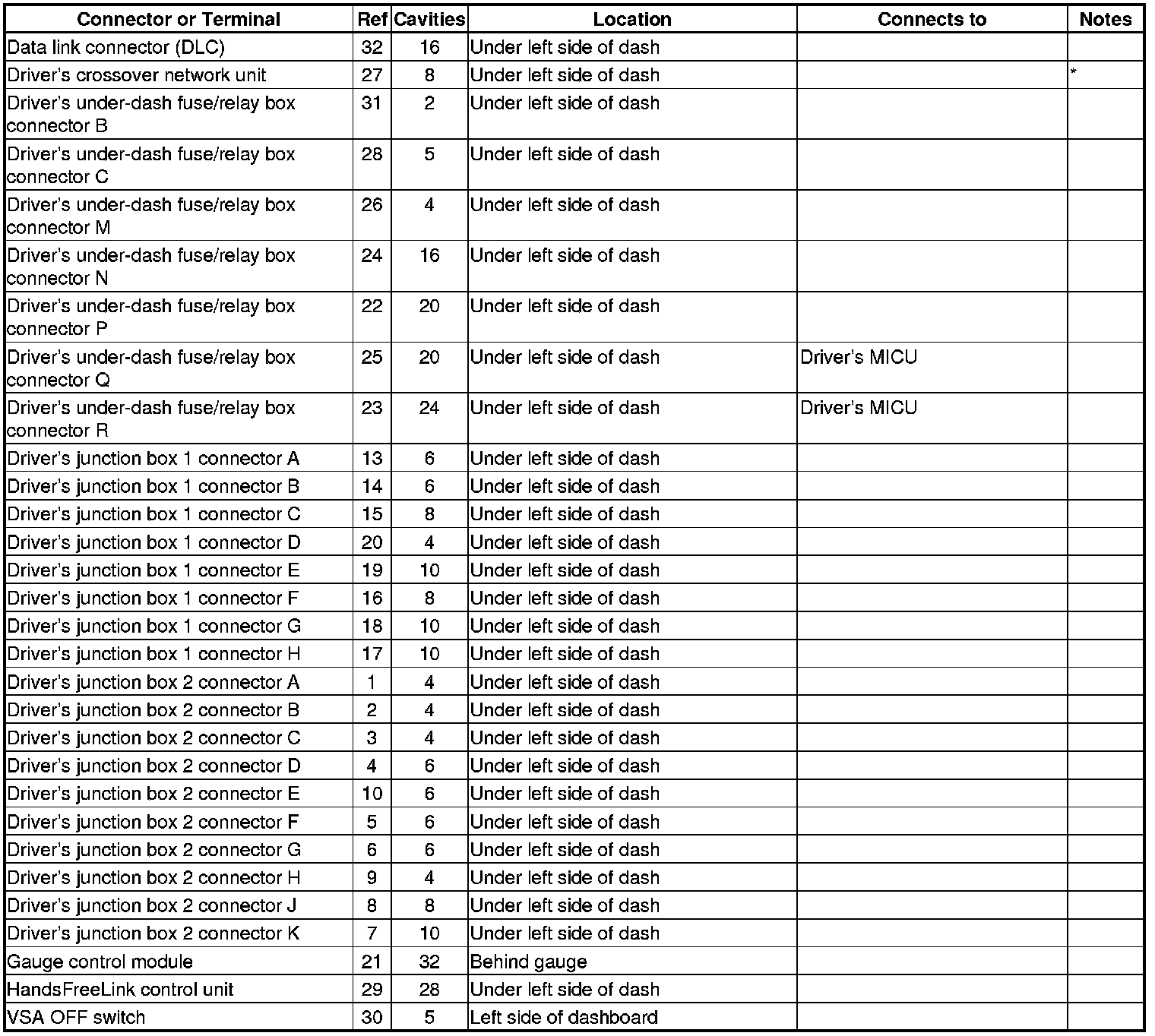

Connector and Harness Locations

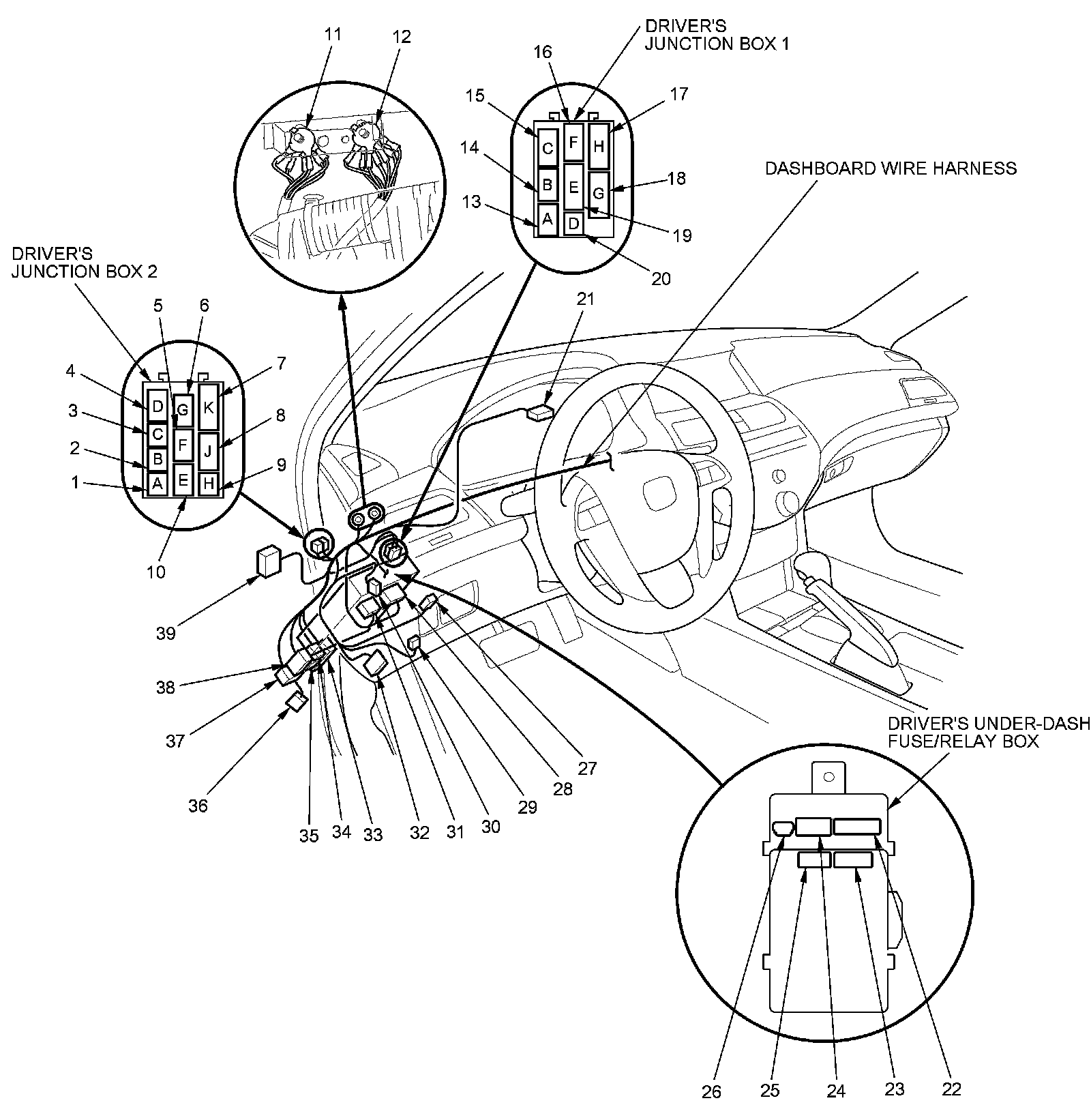

Dashboard Wire Harness (View of driver's side)
Harness View
